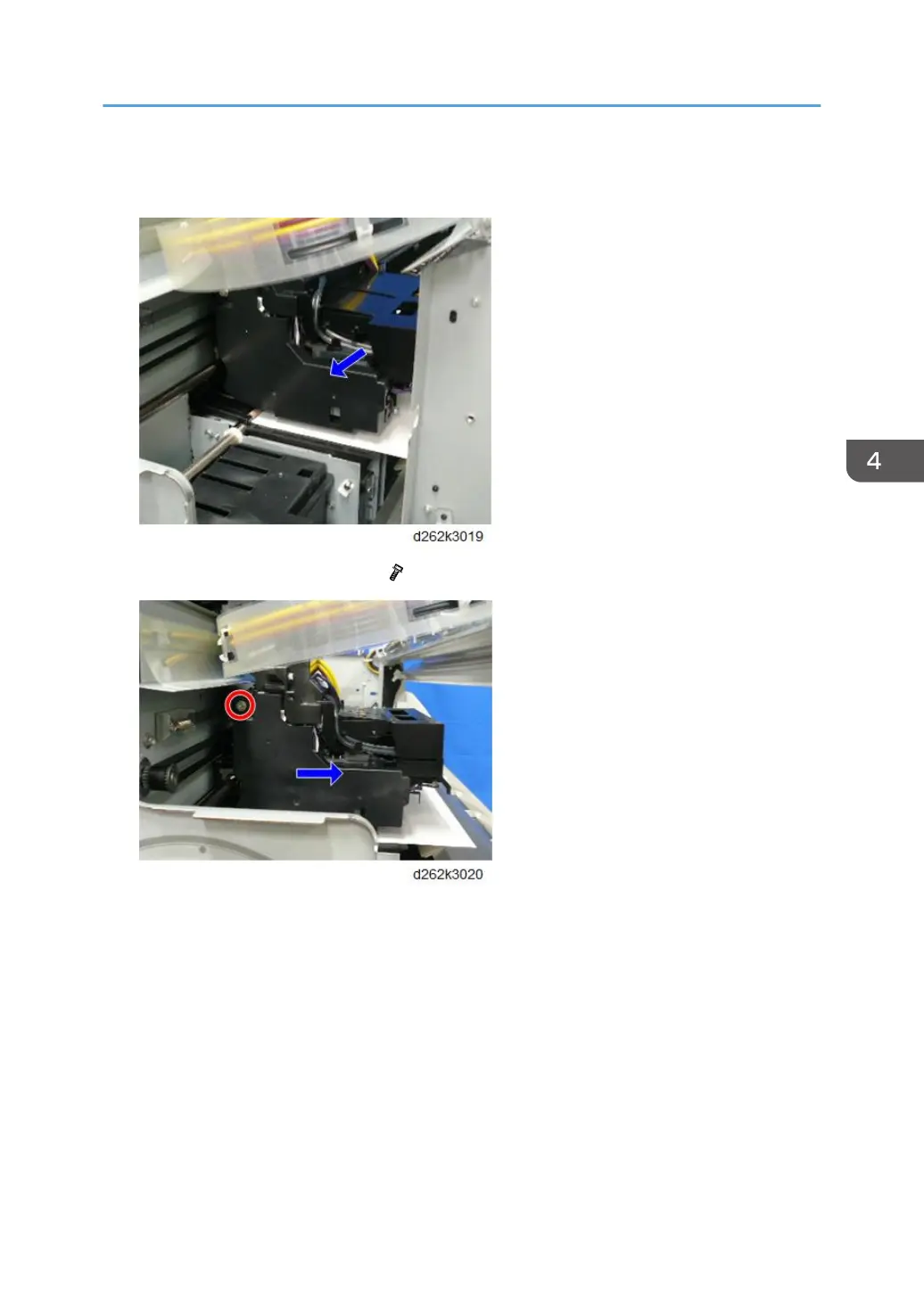

4. Place a sheet of paper at the left end of the platen and move the carriage unit above the

paper manually.

5. Remove the carriage left cover. ( x1)

Carriage Unit

415
