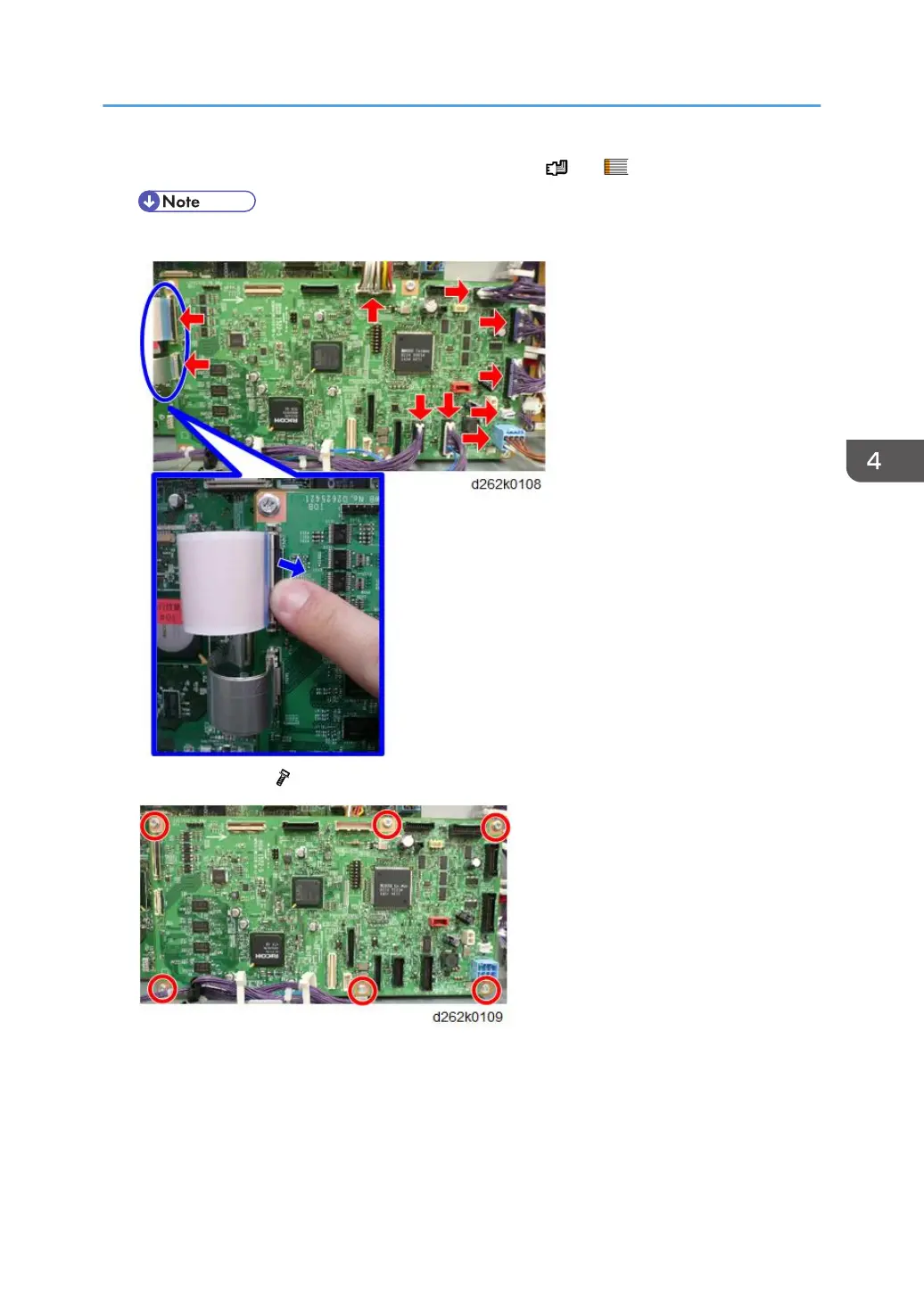

2. Disconnect the connectors shown in the figure below ( x8, x2).

• To disconnect the FFCs, unlock the connectors and release the FFCs as shown below.

3. Remove the IOB ( x6).

Electrical Components

559
