Ricoh MP CW2201 Service Manual

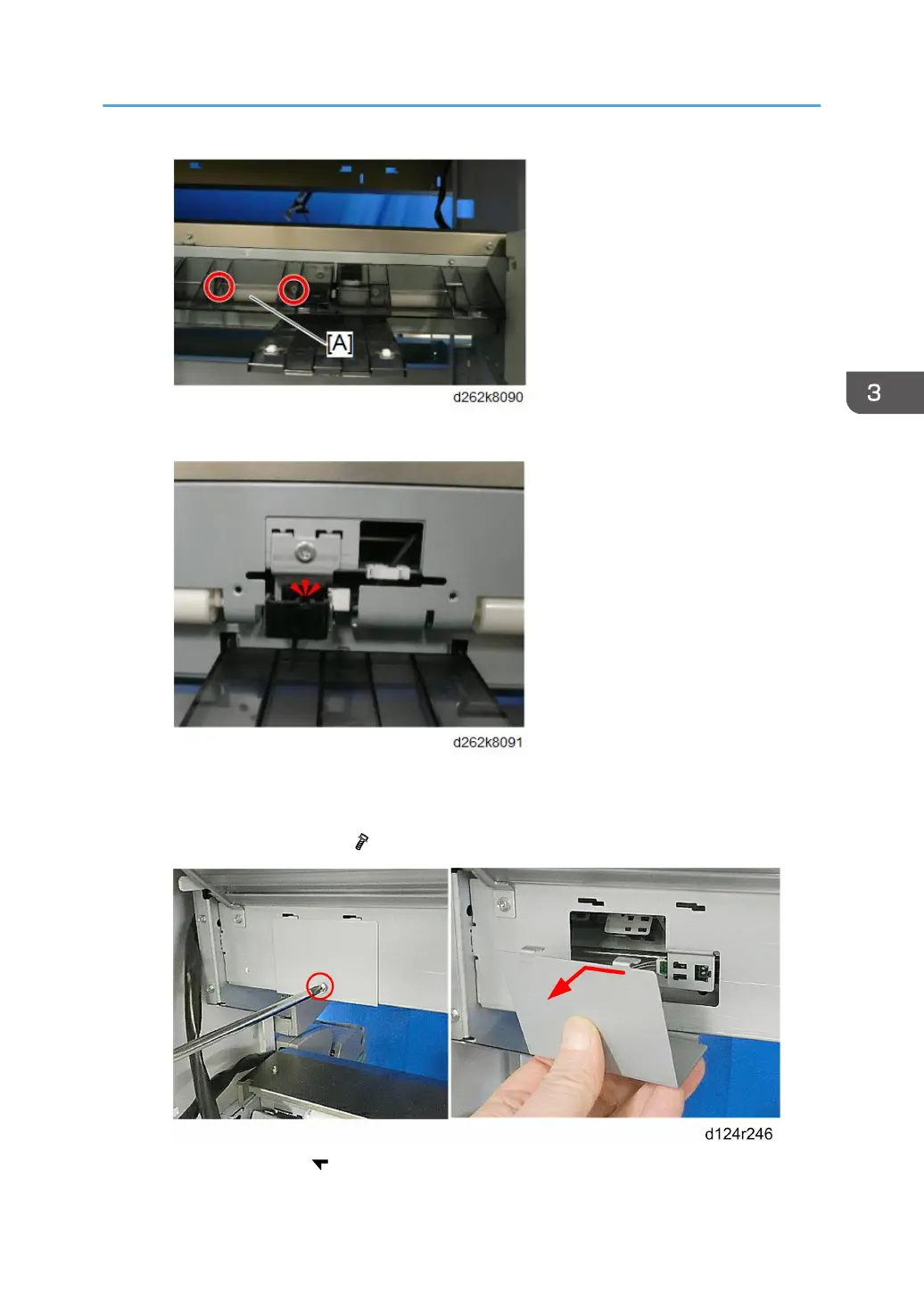

3. Clean the exposed sensor with a blower brush.
Roll Unit Paper Release Sensor
This procedure is the same for both roll units.
1. Remove the sensor plate (
x1).
2. Remove the sensor ( x4).
PM Cleaning Points
209
