Ricoh MP CW2201 Service Manual

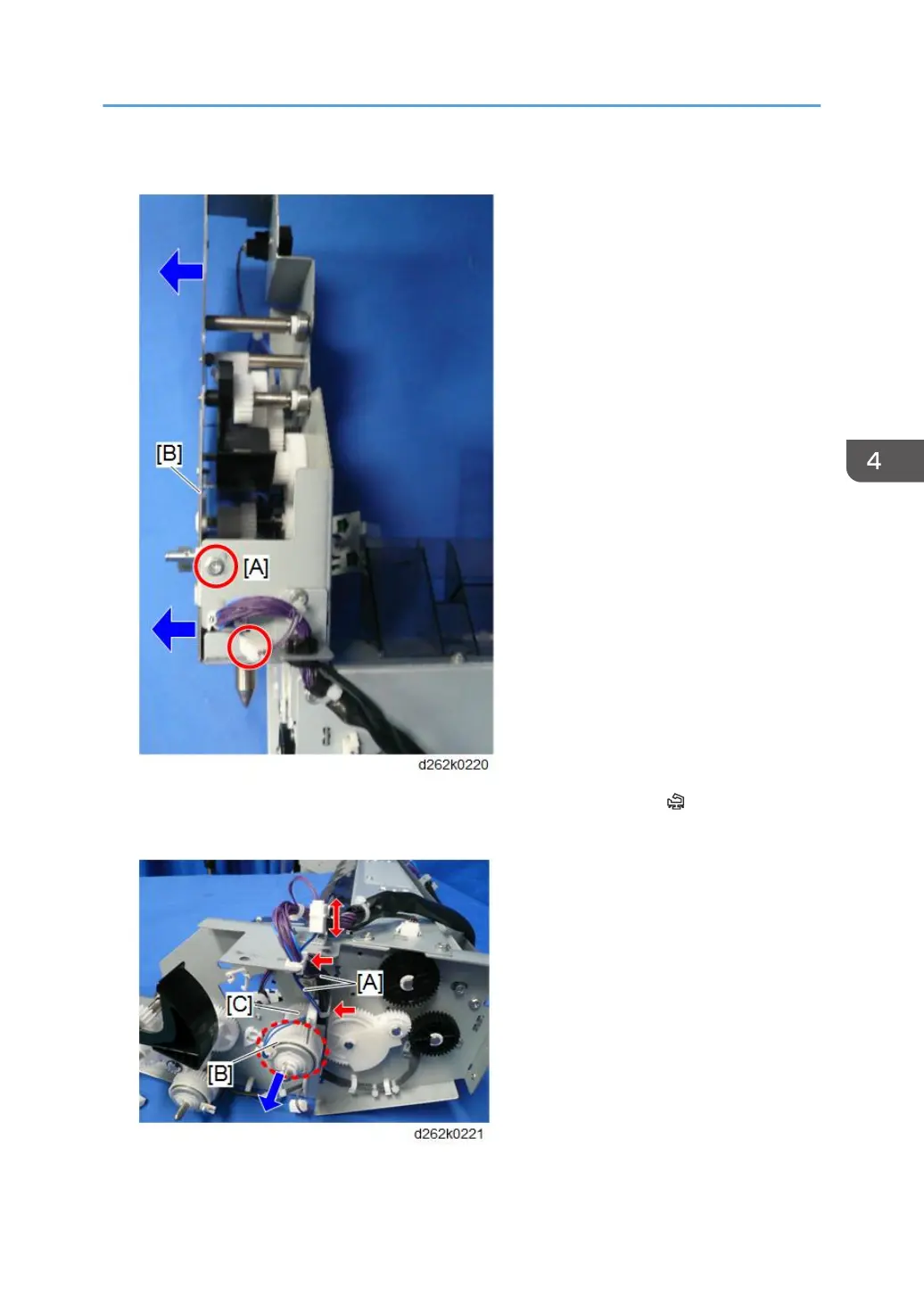

12. Remove the bracket [B].
13. Remove the clamps and connector, and pull away the harnesses [A] ( x3).
14. Remove the roll paper feed clutch [B] and gear [C].
Roll Units
339

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
