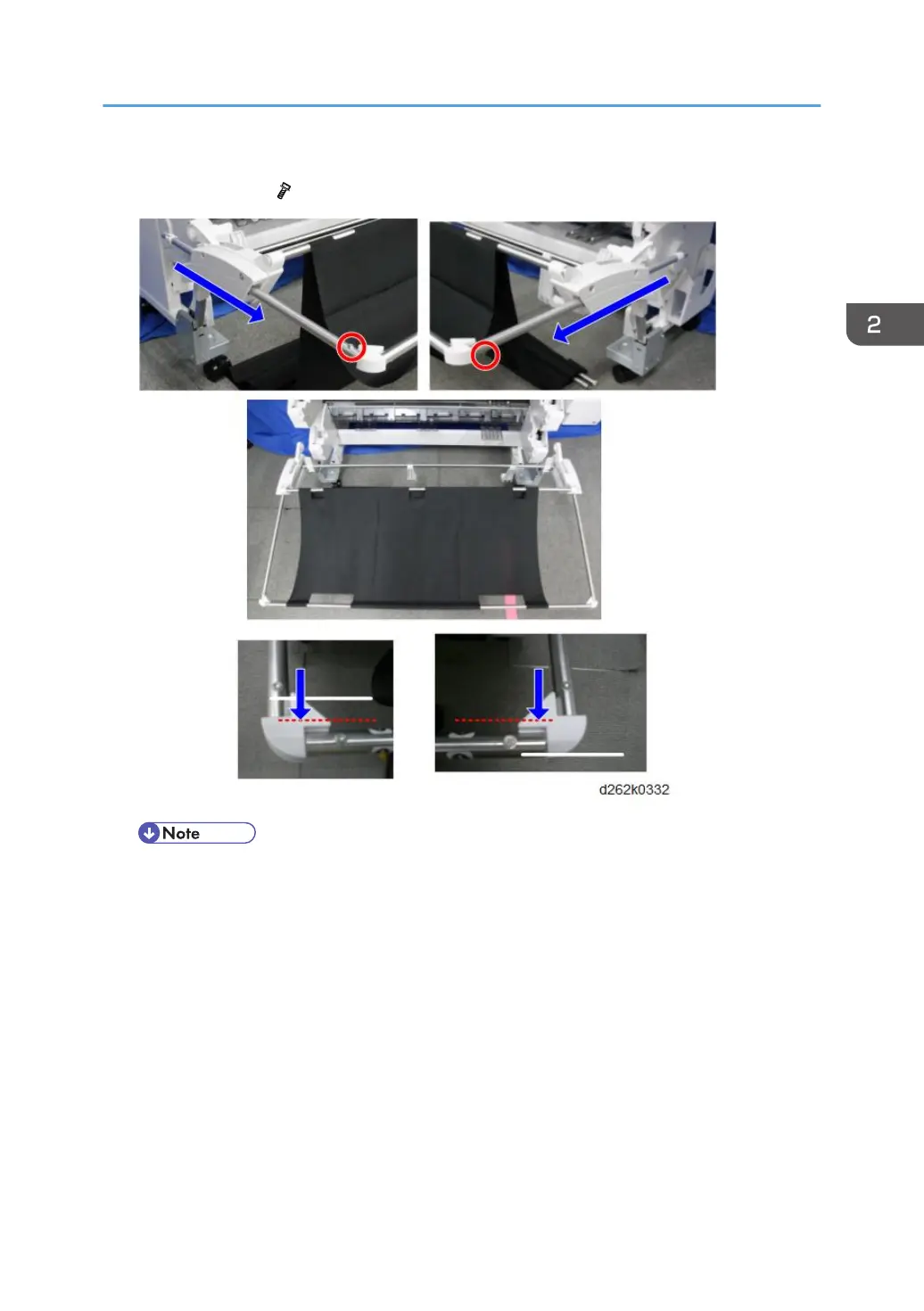

6. Pass the side pipes through the sliders on both sides of the stacker then attach them to the
connector block. ( x2 M3x8)
• Be sure to insert the pipe fully into the connector block. Otherwise other parts cannot be
attached.
