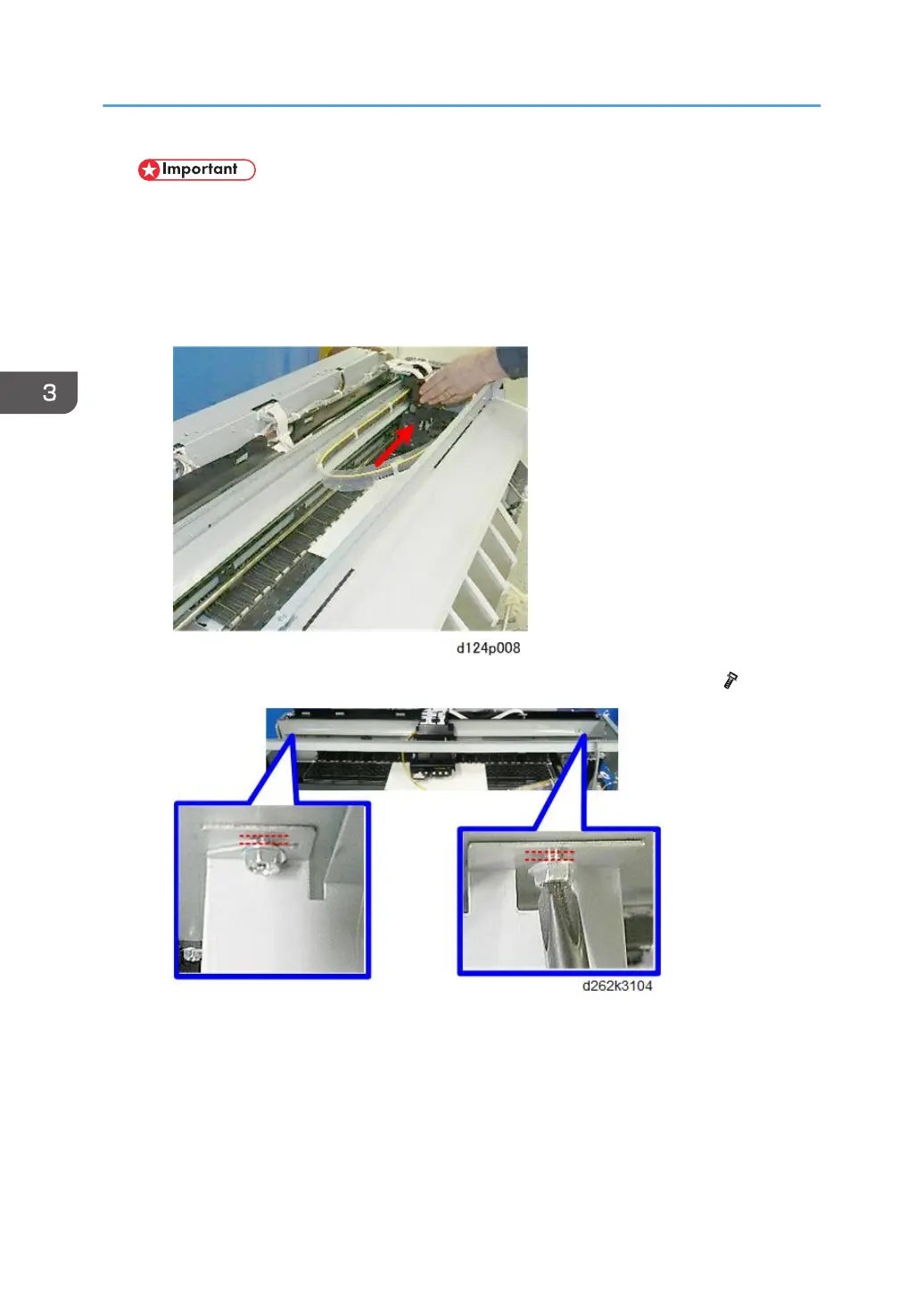

• Never touch or handle the surface of the encoder strip with bare hands. Smudges and
fingerprints can interfere with the sensor readings of the encoder strip.
1. Move the carriage unit to the center (p.267).
2. Remove the top cover (p.245).
3. Push the carriage to the right.
4. Loosen the screws on both sides of the ink tube rail. Do not remove the screws. ( x2)
5. Remove the plate.
3. Preventive Maintenance
196
