Ricoh MP CW2201 Service Manual

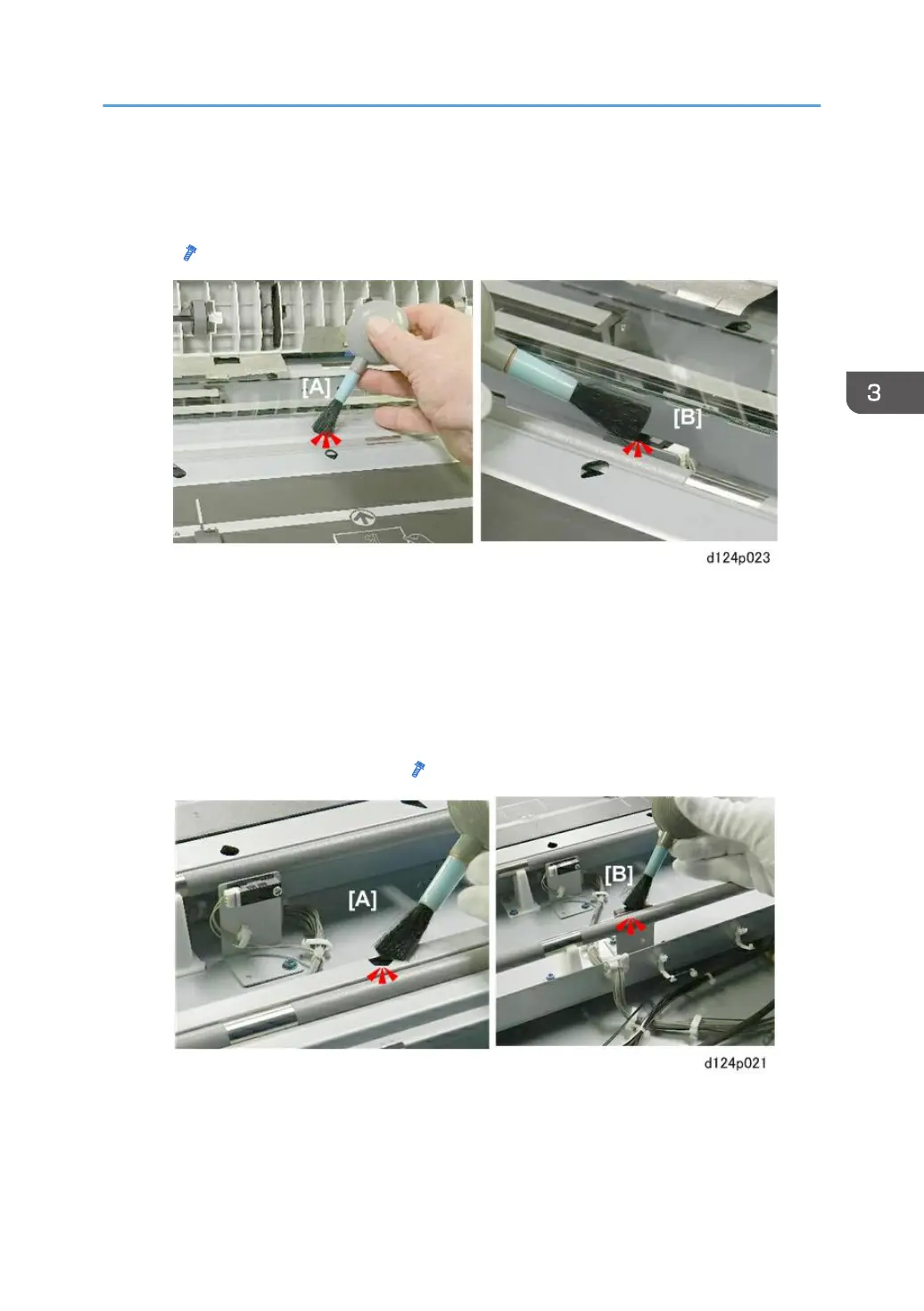

2. Clean with a blower brush [A].
-or-
3. Remove the original registration sensor cover plate, and then clean with the blower brush [B].
( x2) (p.289).
Original Exit Sensor
• Blower brush
1. Remove the scanner unit (p.254).
2. Clean with a blower brush [A]
-or-
3. Remove the scanner unit, remove the original exit sensor cover plate and then clean the
sensor with the blower brush [B]. ( x2).
PM Cleaning Points
205

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
