Ricoh MP CW2201 Service Manual

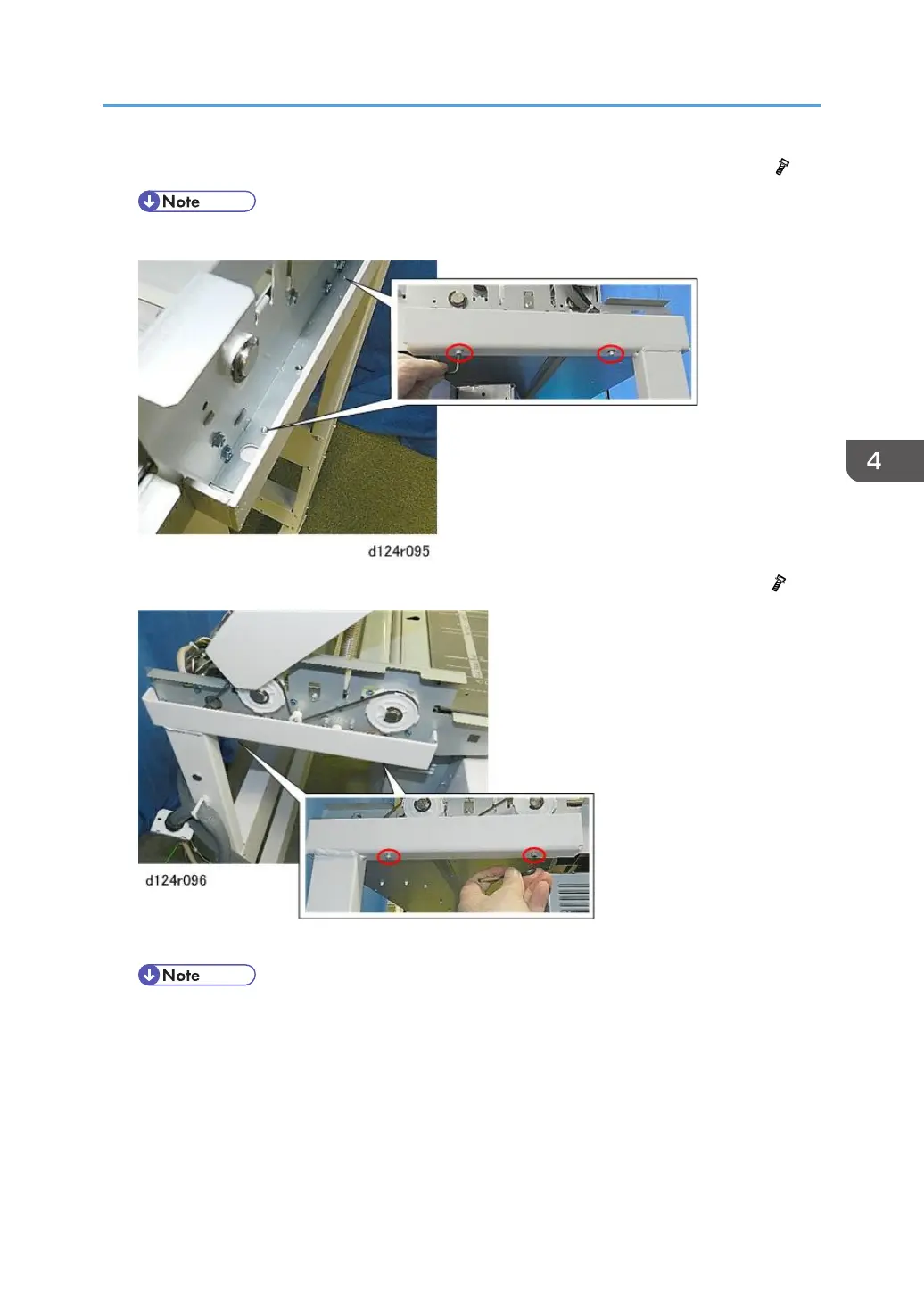

4. Loosen the bolt with a hexagonal wrench from the lower right of the scanner rack. ( x2)
• Never remove this bolt.
5. Remove the bolt with a hexagonal wrench from the lower left of the scanner rack. ( x2)
6. Slowly move the scanner unit so that the main unit is placed under the scanner unit.
• Placing of the main unit under the scanner unit prevents the scanner unit from falling to the
floor.
Common Procedures
263

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
