Ricoh MP CW2201 Service Manual

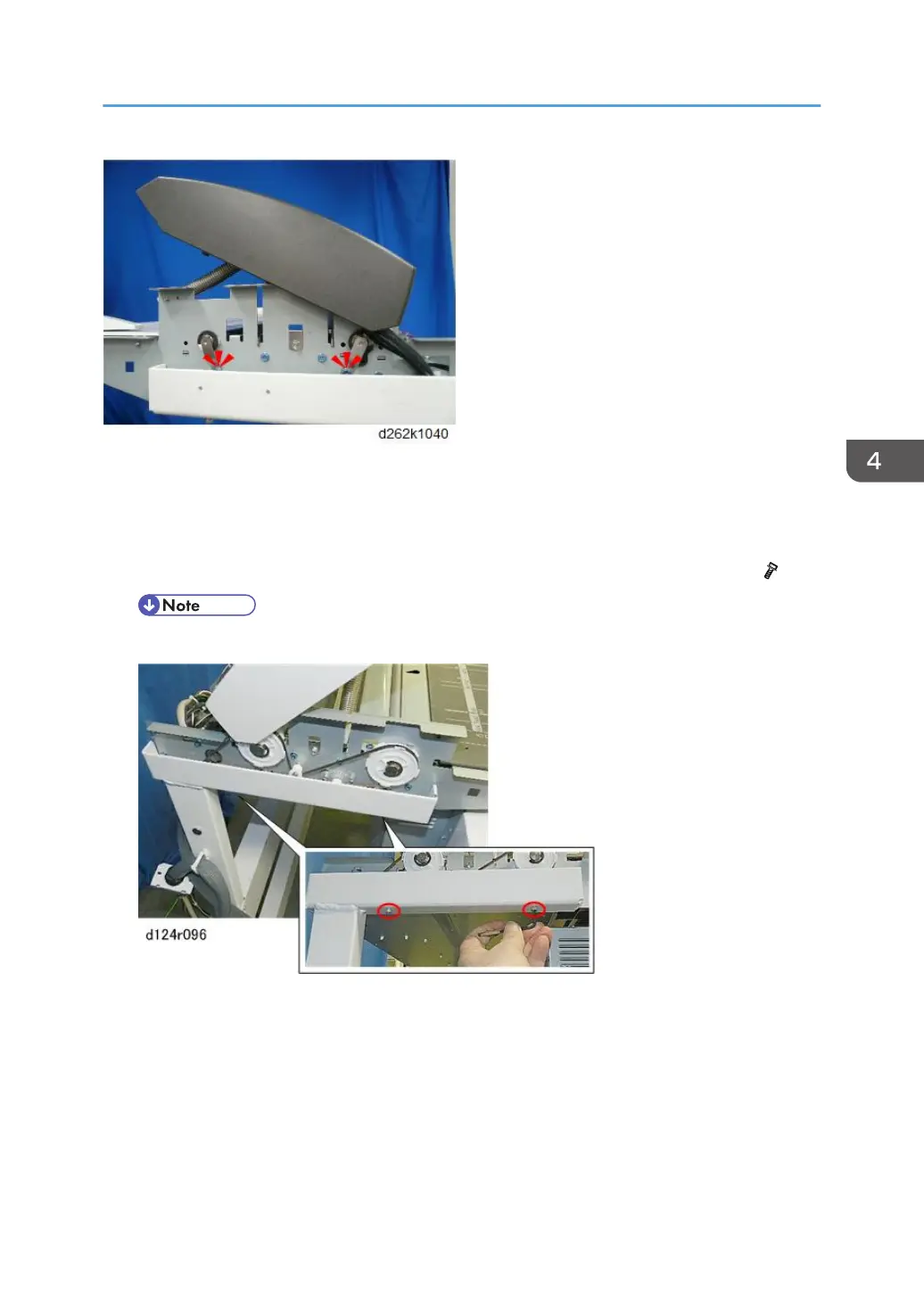

1. Separate the scanner unit and the main unit (p.274).
2. Remove the scanner rear cover (p.260).
3. Remove the scanner left cover and scanner right cover (p.260).
4. Loosen the bolt with a hexagonal wrench from the lower left of the scanner rack. ( x2)
• Never remove this bolt.
Common Procedures
265
