Ricoh MP CW2201 Service Manual

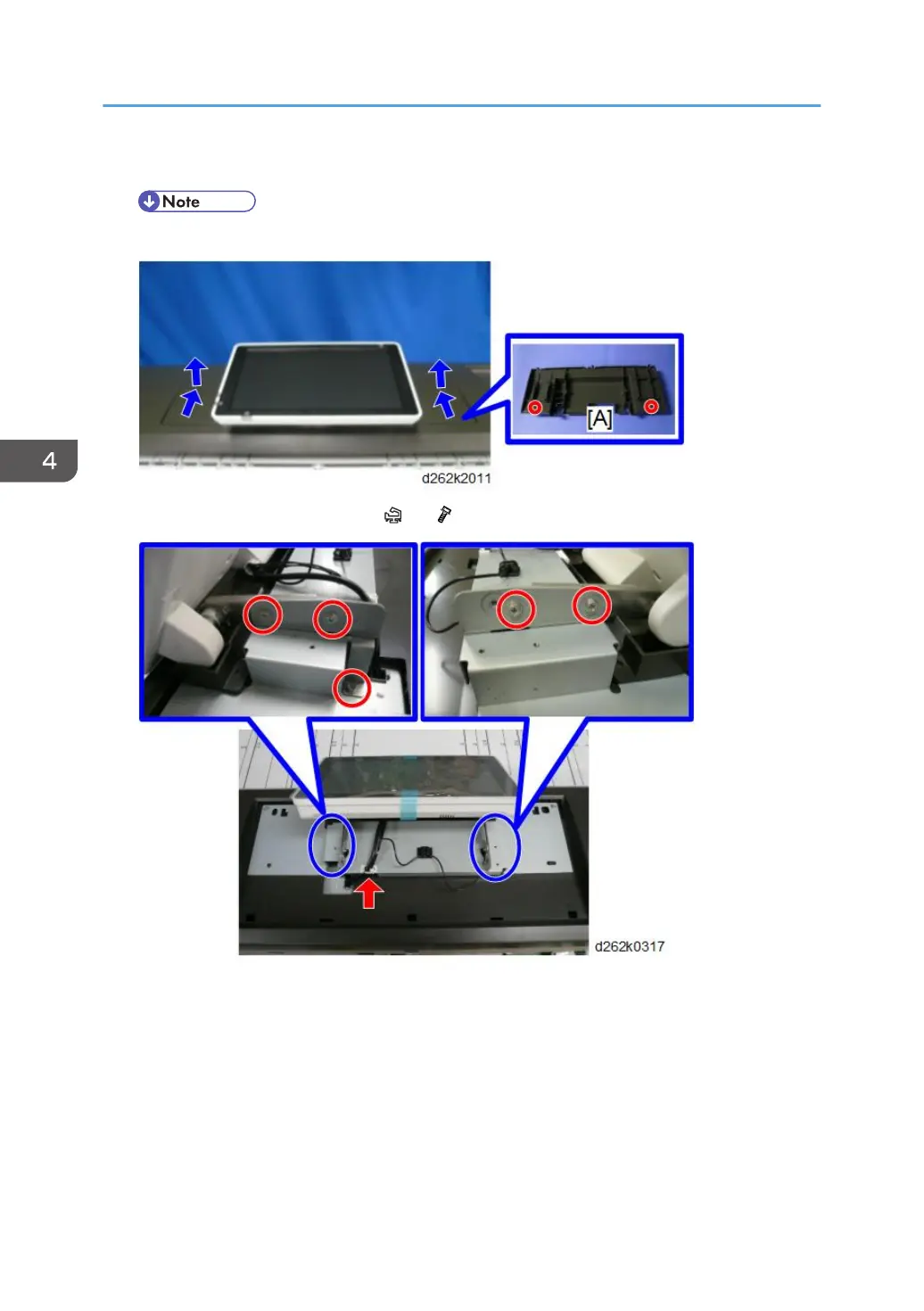

3. Push the operation cover in the direction indicated by the arrows and remove it.
• Two hooks are on the back of the cover [A].
4. Remove the clamp and screws. ( x1, x5)
5.
Remove the operation panel.
4. Replacement and Adjustment
280

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
