Ricoh MP CW2201

To Next Page

To Previous Page

Mounting the Operation Cover

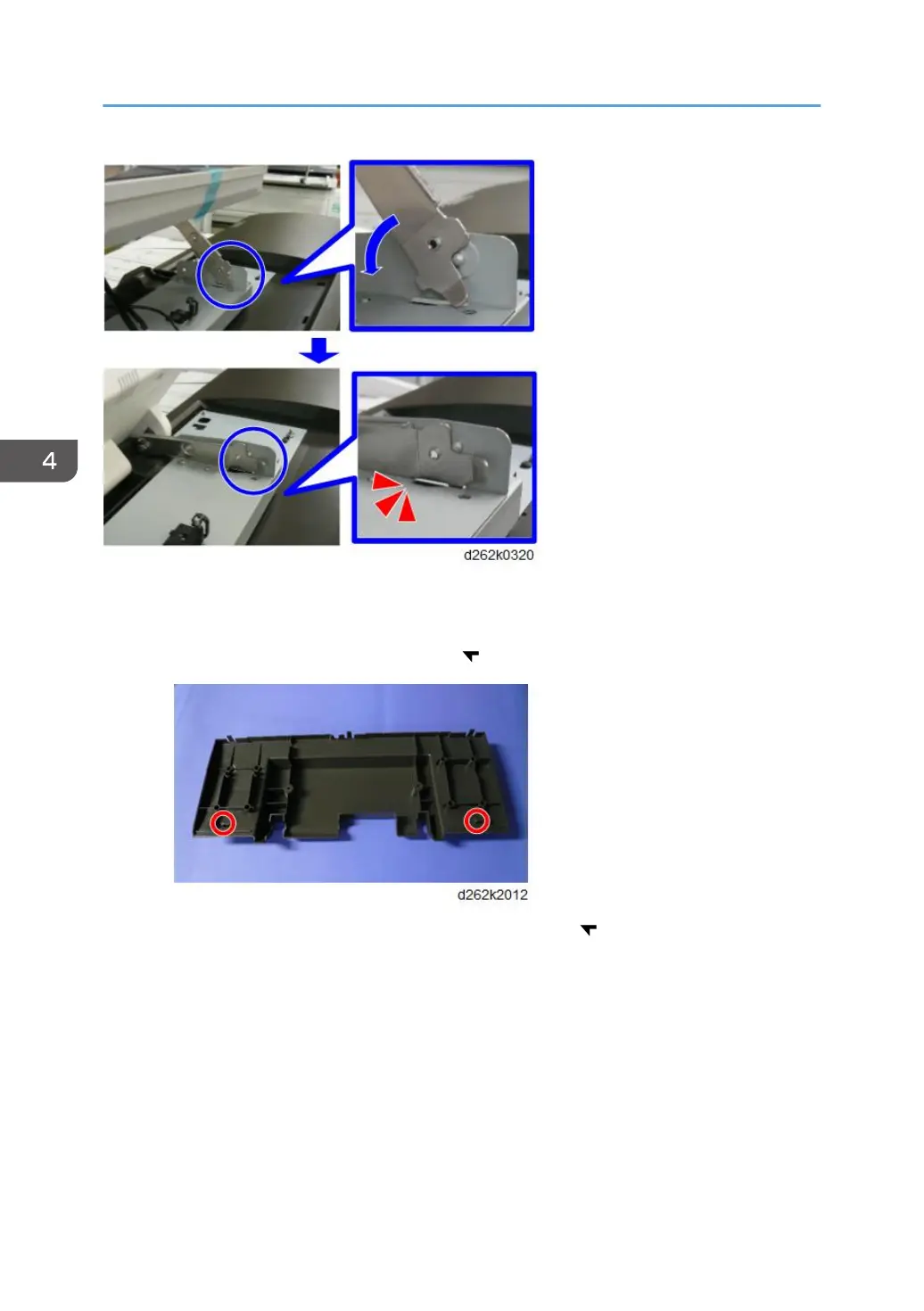

1. Align the hooks on the rear of the operation cover with the wide end of the mounting

holes and pull the cover toward you. ( x2)

2. Hook the cover onto the rear of the operation cover. ( x3)

4. Replacement and Adjustment

282
