Ricoh MP CW2201 Service Manual

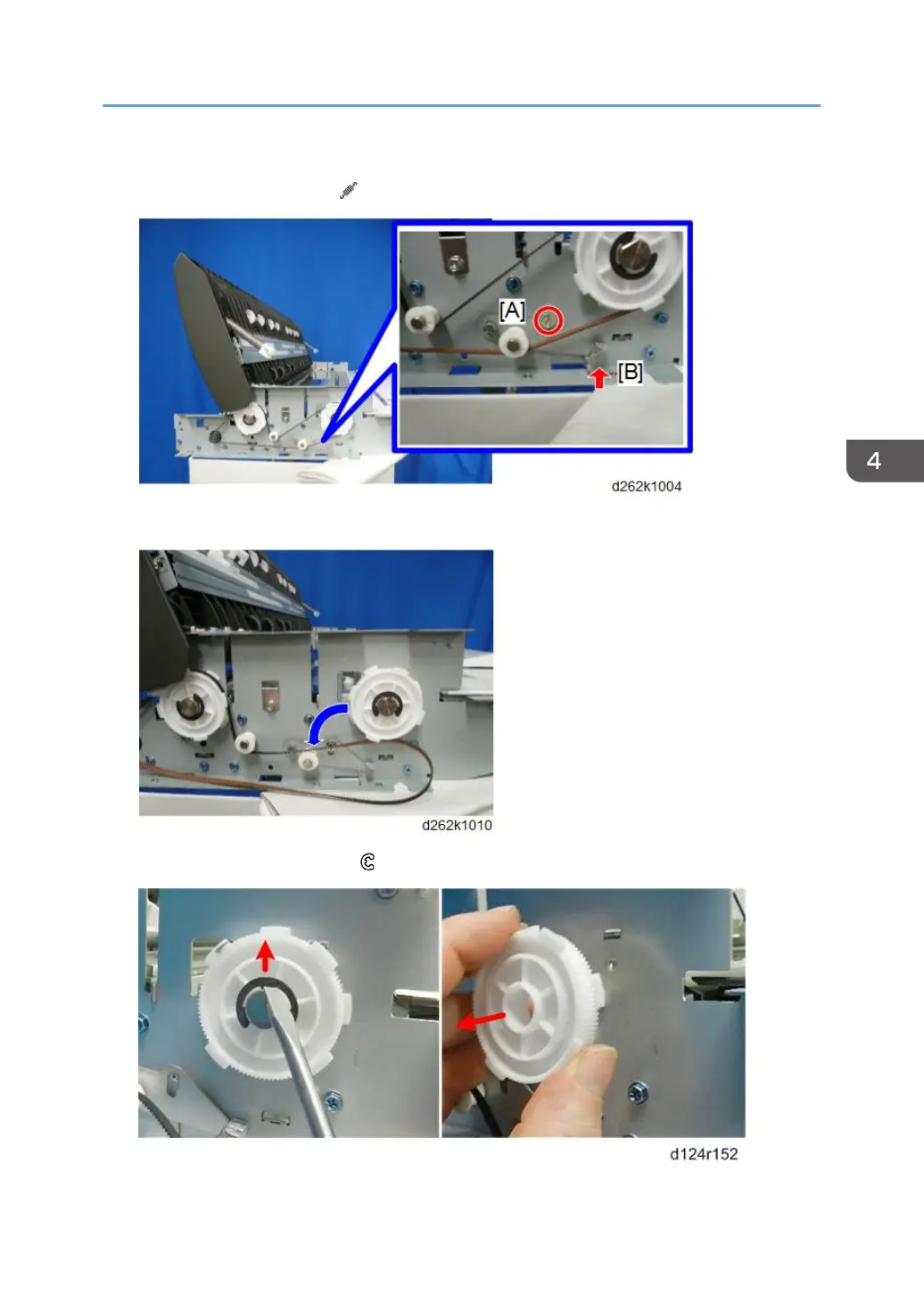

6. Loosen the screw of the tension bracket [A], and then remove the spring [B] to loosen the
tension of the timing belt. ( x1)
7. Remove the timing belt from the original feed roller drive gear
8. Remove the gear and shaft. ( x1)
Scanner
295

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
