Ricoh MP CW2201 Service Manual

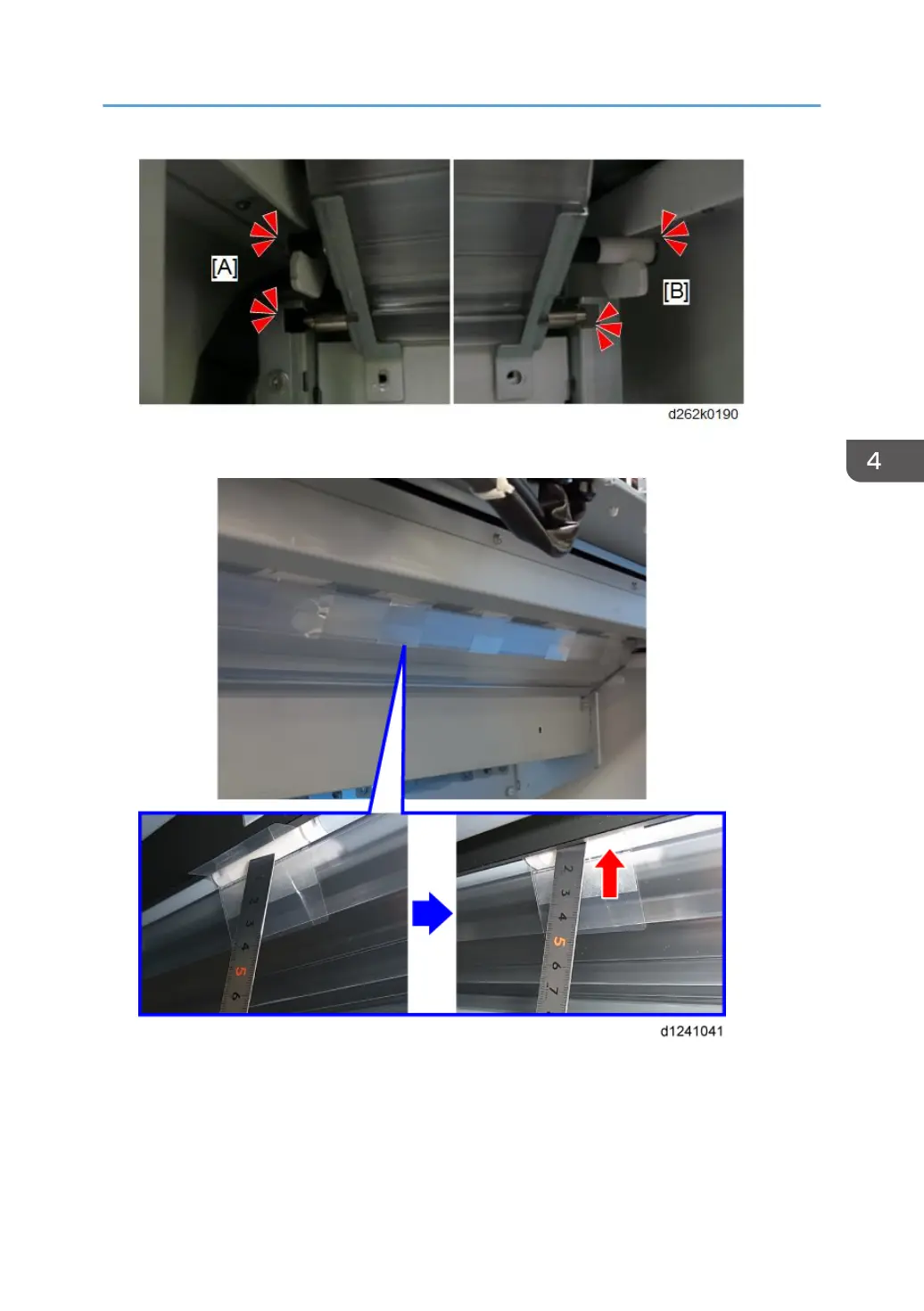

5. Use the end of a scale or ruler to push the film sheets behind the guide plate of the roll unit 1.
6. Make sure that the roll unit harness are tight against the bottom of the PCB box.
Roll Units
321

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
