Ricoh MP CW2201 Service Manual

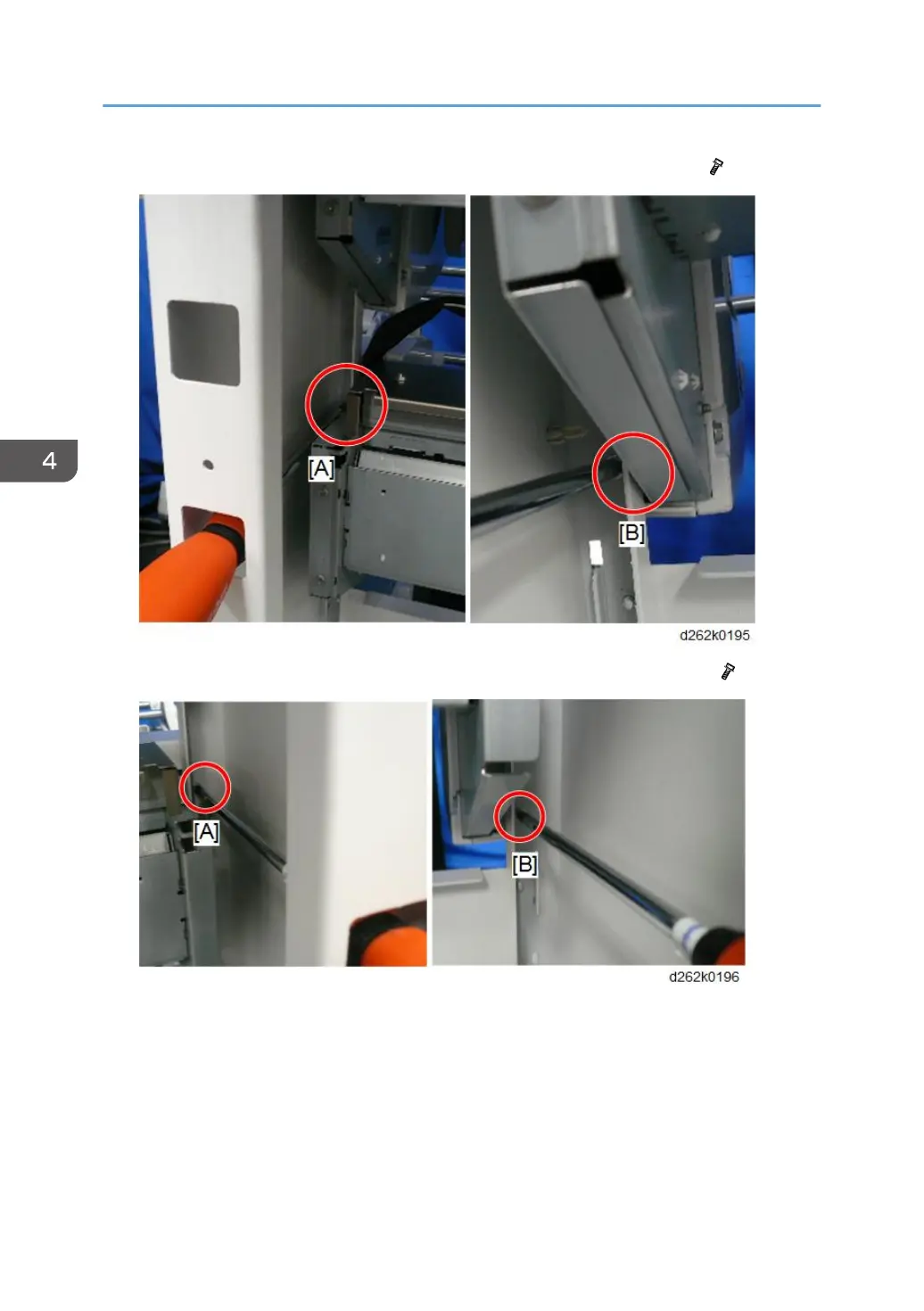

9. From the left of the roll unit 2, remove the upper [A] and lower screws [B] ( x2).
10. From the right of the roll unit 2, remove the upper [A] and lower screws [B] ( x2).
4. Replacement and Adjustment
326

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
