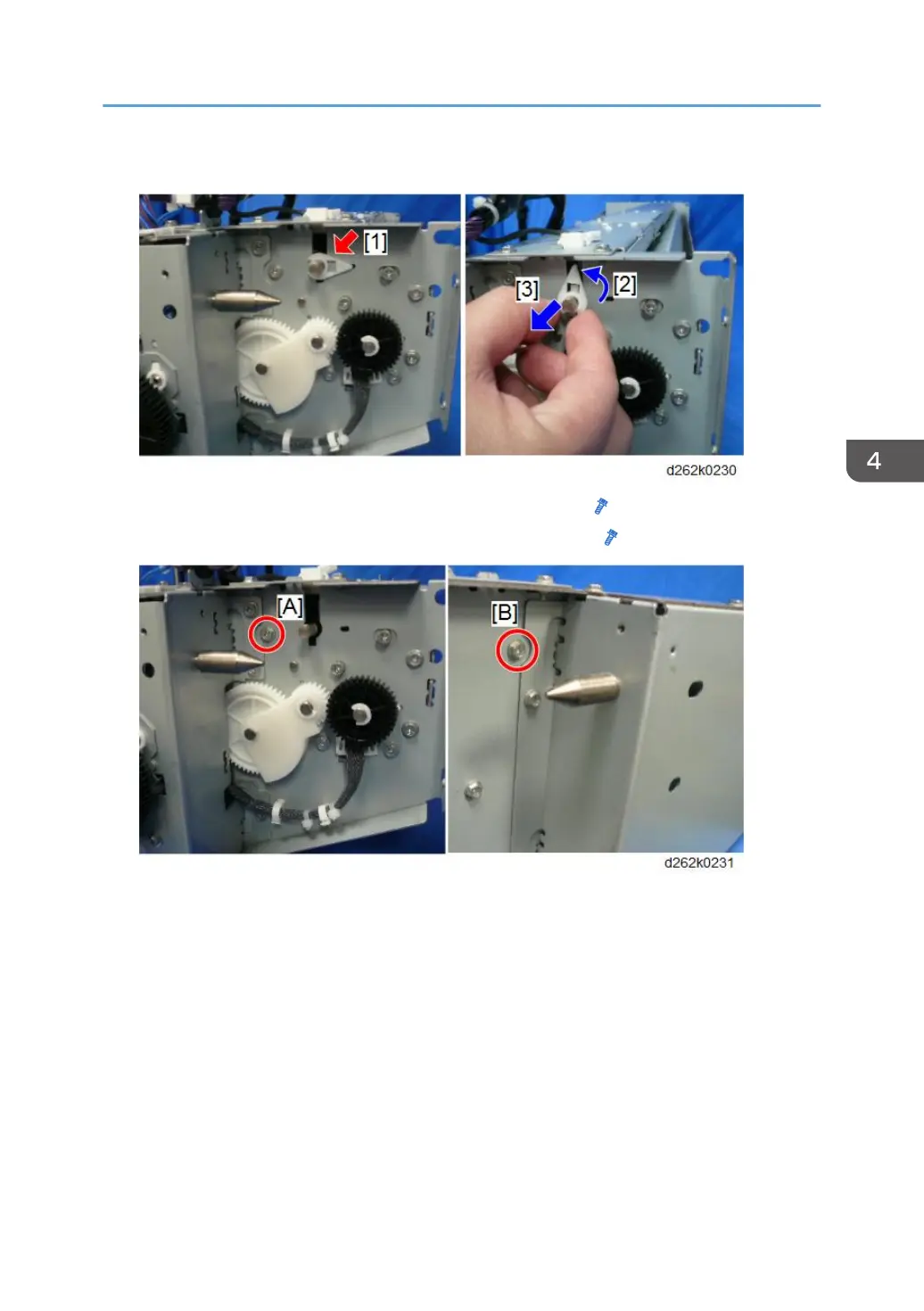

5. Raise the tip of the latch [1] out of its hole, rotate it to vertical [2], and then remove it [3].
6. Remove the screw [A] on the left of the feed roller housing ( x1).
7. Remove the screw [B] on the right of the feed roller housing ( x1).
Roll Units
347

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
