Ricoh MP CW2201 Service Manual

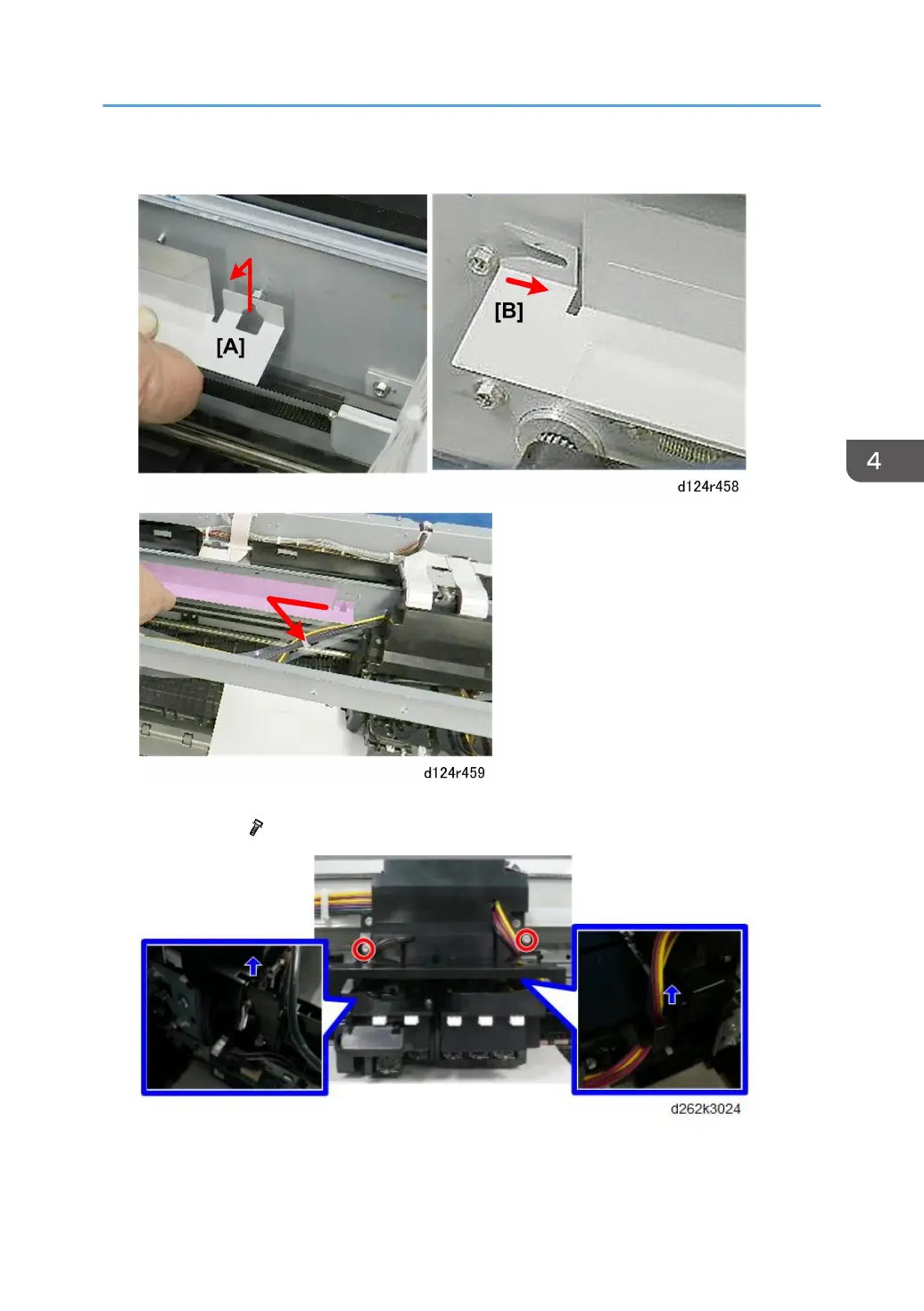

4. Slide the rail off the screws, [A] on the right of the rail and [B] on the left.
5. Remove the carriage top covers that secure the ink tube at both left and right of the
carriage unit ( x2).
Main Scan
383

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
