Ricoh MP CW2201 Service Manual

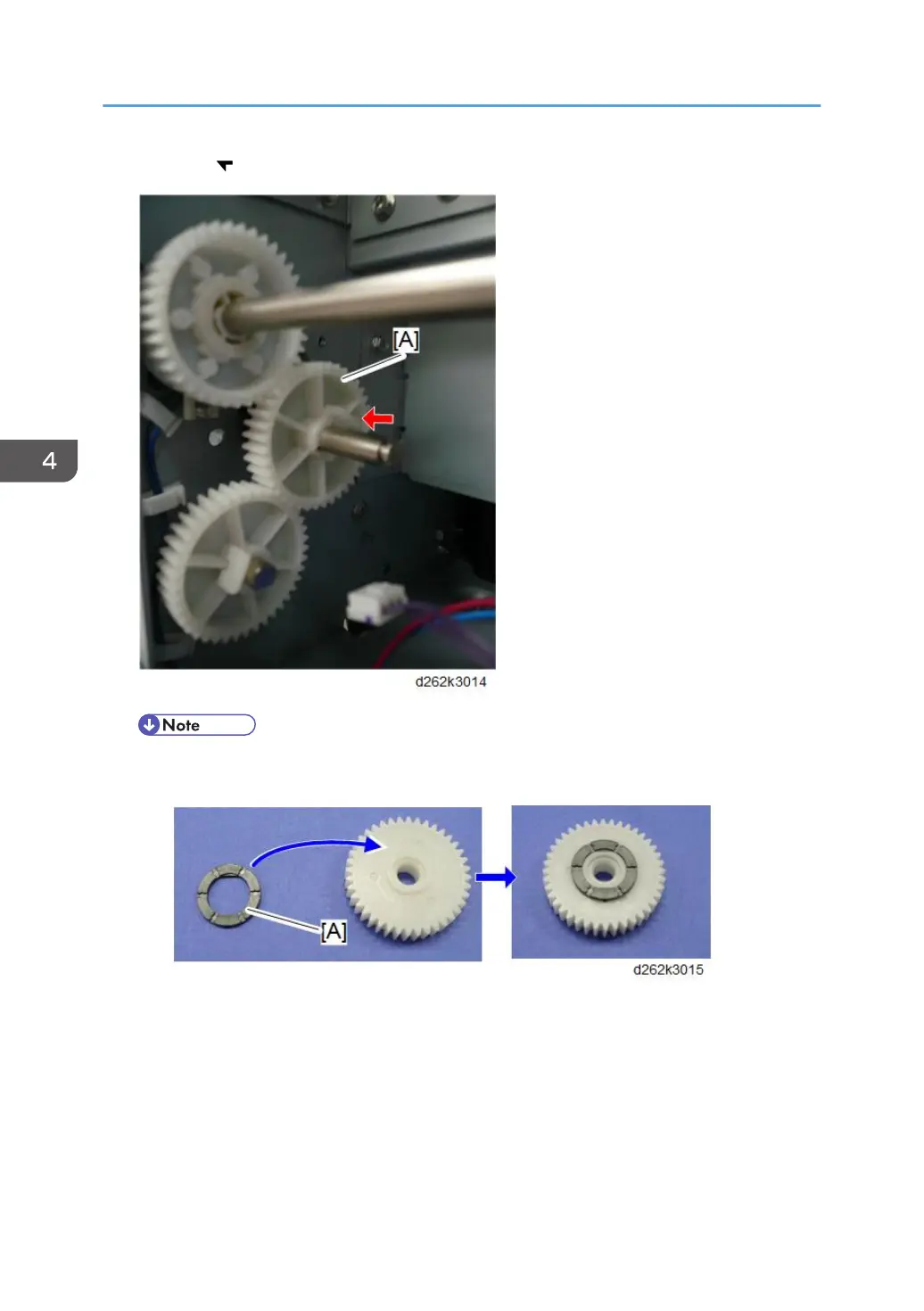

2. Gear [A] ( x1).
• If the clutch plate is detached from the gear, place the gear with the clutch side [A] up and
attach it to the gear.
• Take care that the clutch plate is attached correctly with the clutch side.
4. Replacement and Adjustment
404

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
