Ricoh MP CW2201

To Next Page

To Previous Page

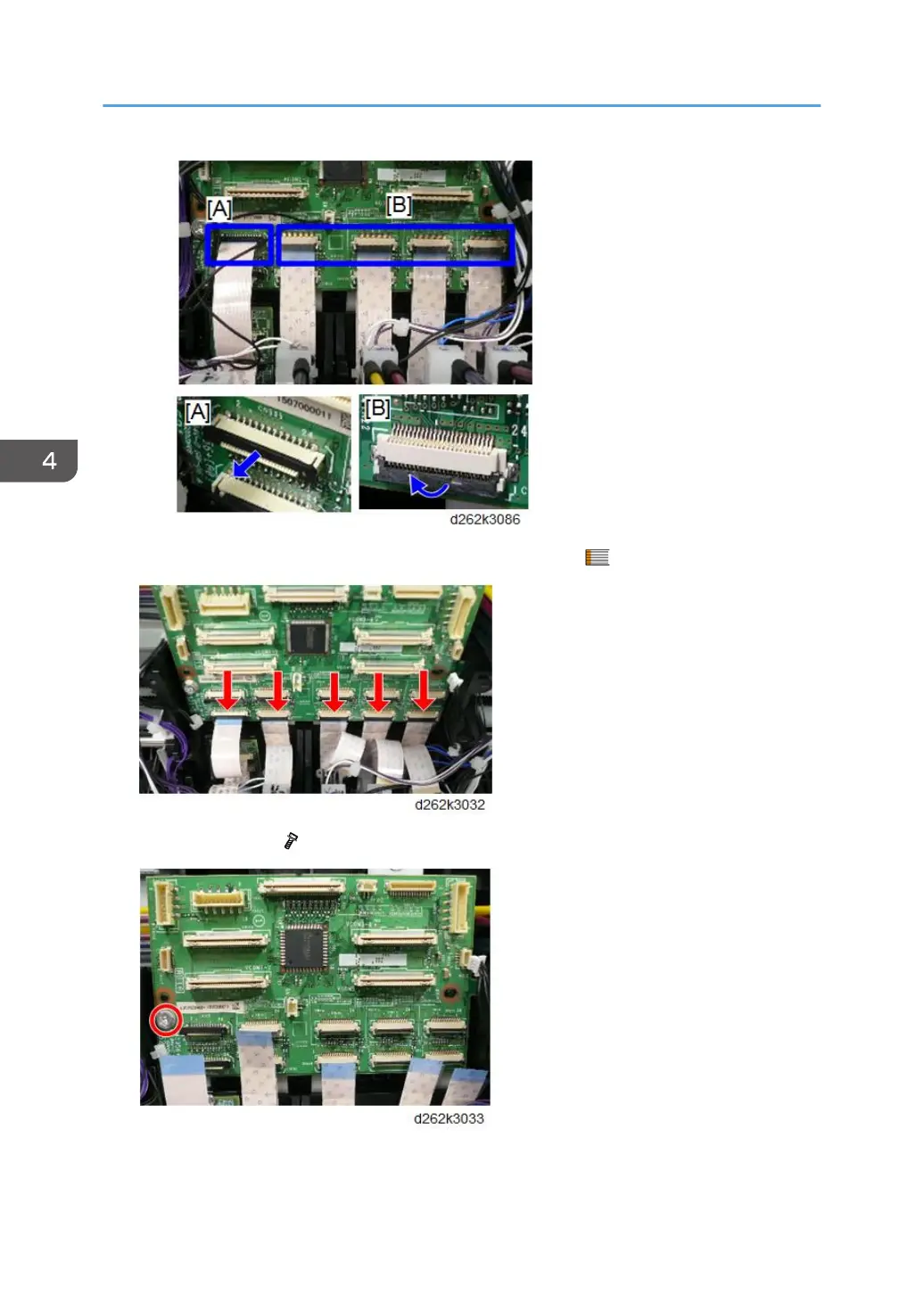

12. Release the FFCs (backward) from the bottom of the HRB. ( x5)

13. Remove the HRB. ( x1)

4. Replacement and Adjustment

422
