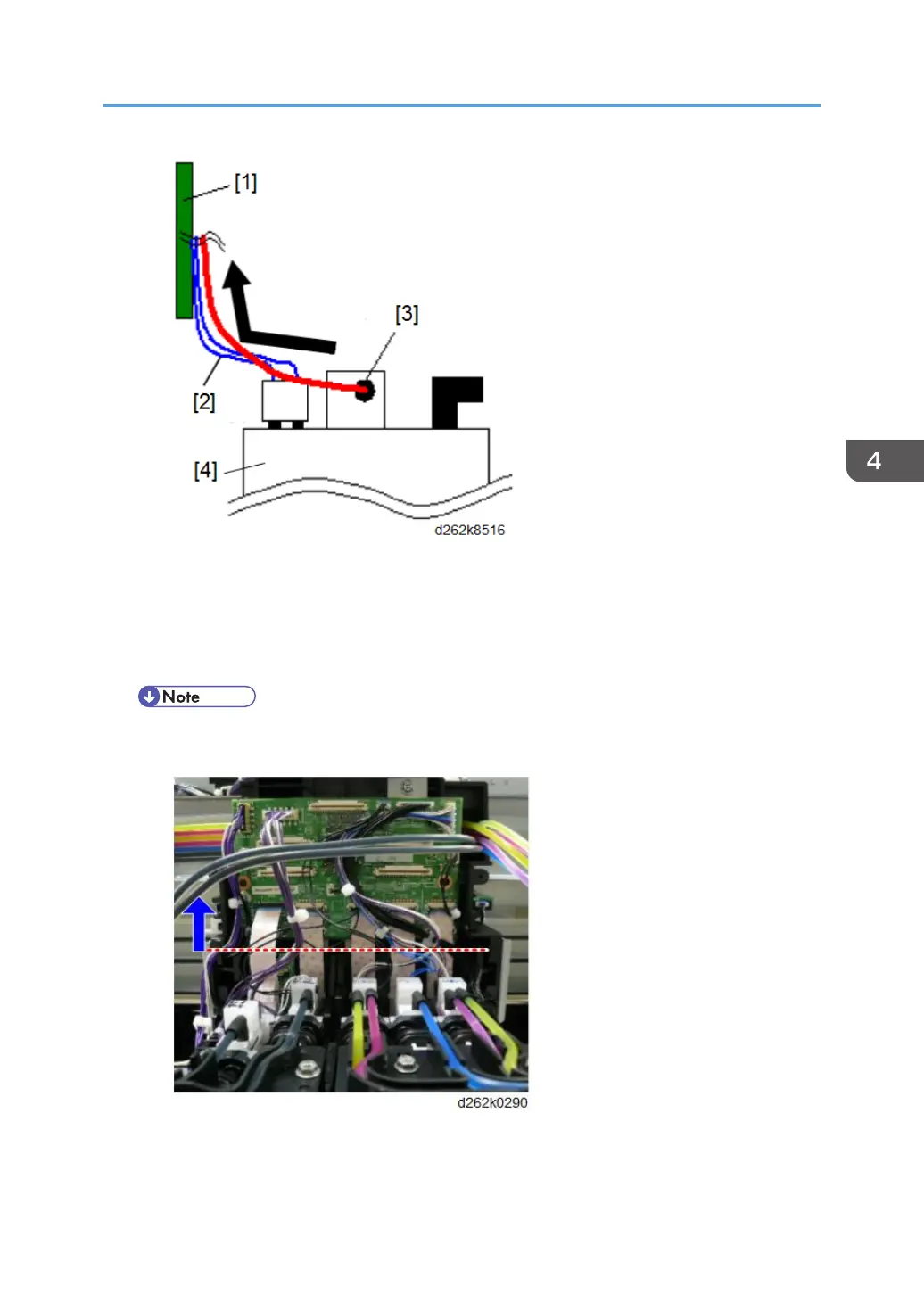

• 1: HRB

• 2: Electrode pin harness

• 3: Thermistor

• 4: Head tank

• Keep extra length of the thermistor harness above the carriage front cover line as shown in the

illustration below.
