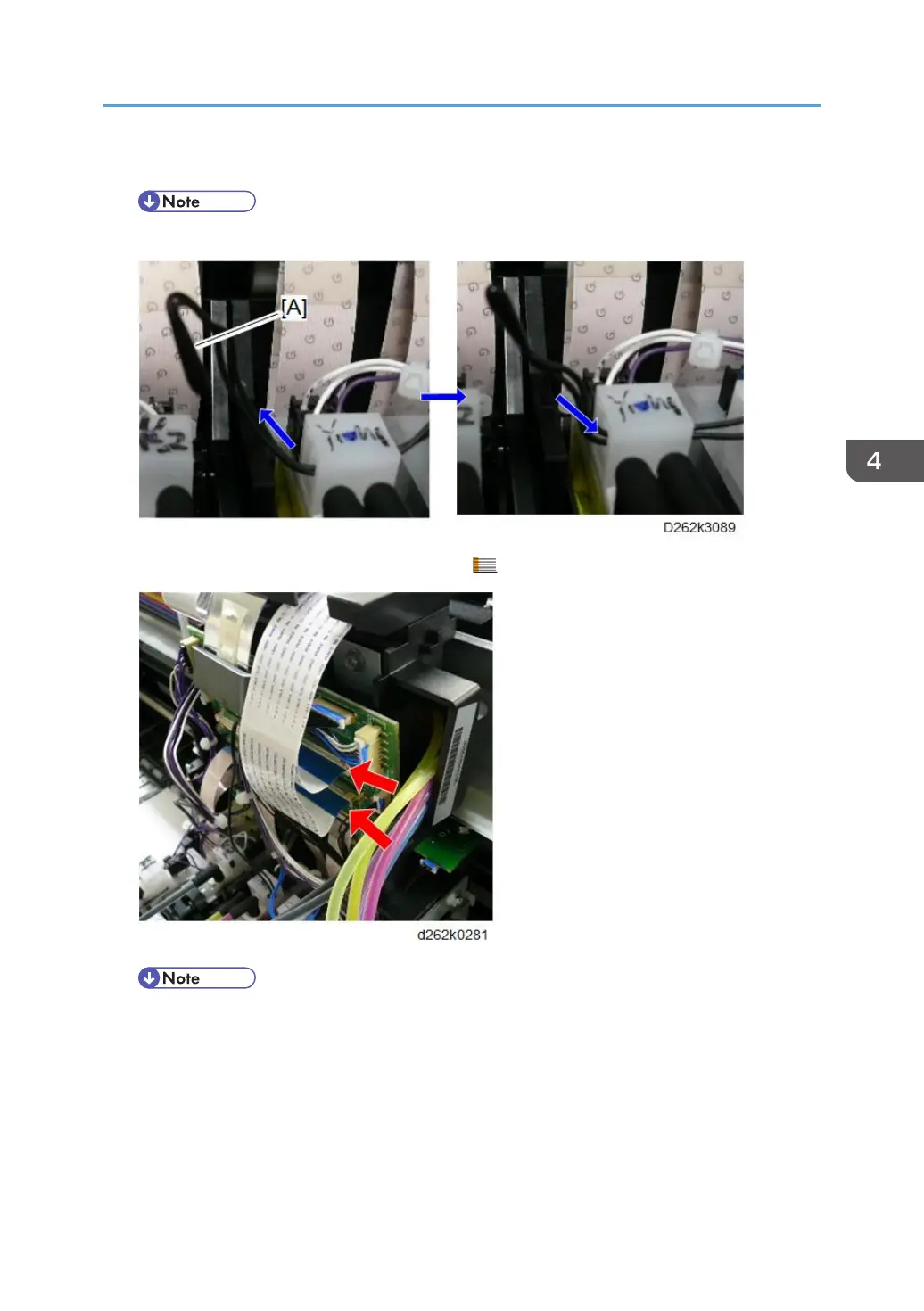

2. Remove the thermistor from the head tank (Y1/M1) of the print head unit.
• Unbend the tip of the harness [A] then remove.
3. Release the FFCs from the right of the HRB. ( x2)
• To release the FFCs, push the plate [A] to the HRB.
Carriage Unit
447
