Ricoh MP CW2201

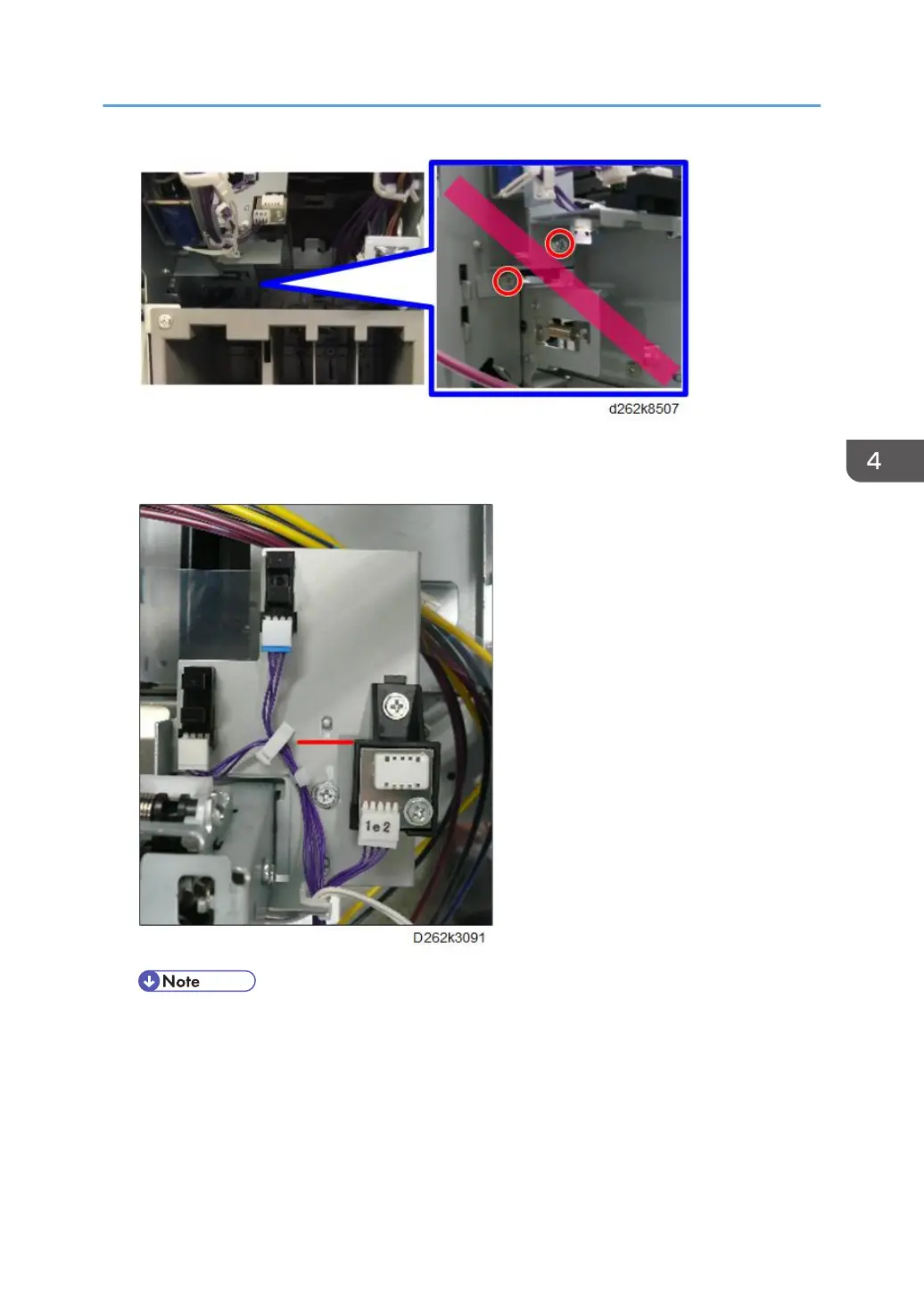

1. Mark the point of the boss of the main ink level sensor bracket (a red line in the illustration
below).
• When the main ink level sensor bracket is to be attached, be sure to place the OCFS actuator
at the center of the OCFS actuator sensor. For details, see "Attach the main ink level sensor
bracket in the procedure below" in "Precautions" for attaching the carriage unit.
Carriage Unit
475
