Ricoh MP CW2201 Service Manual

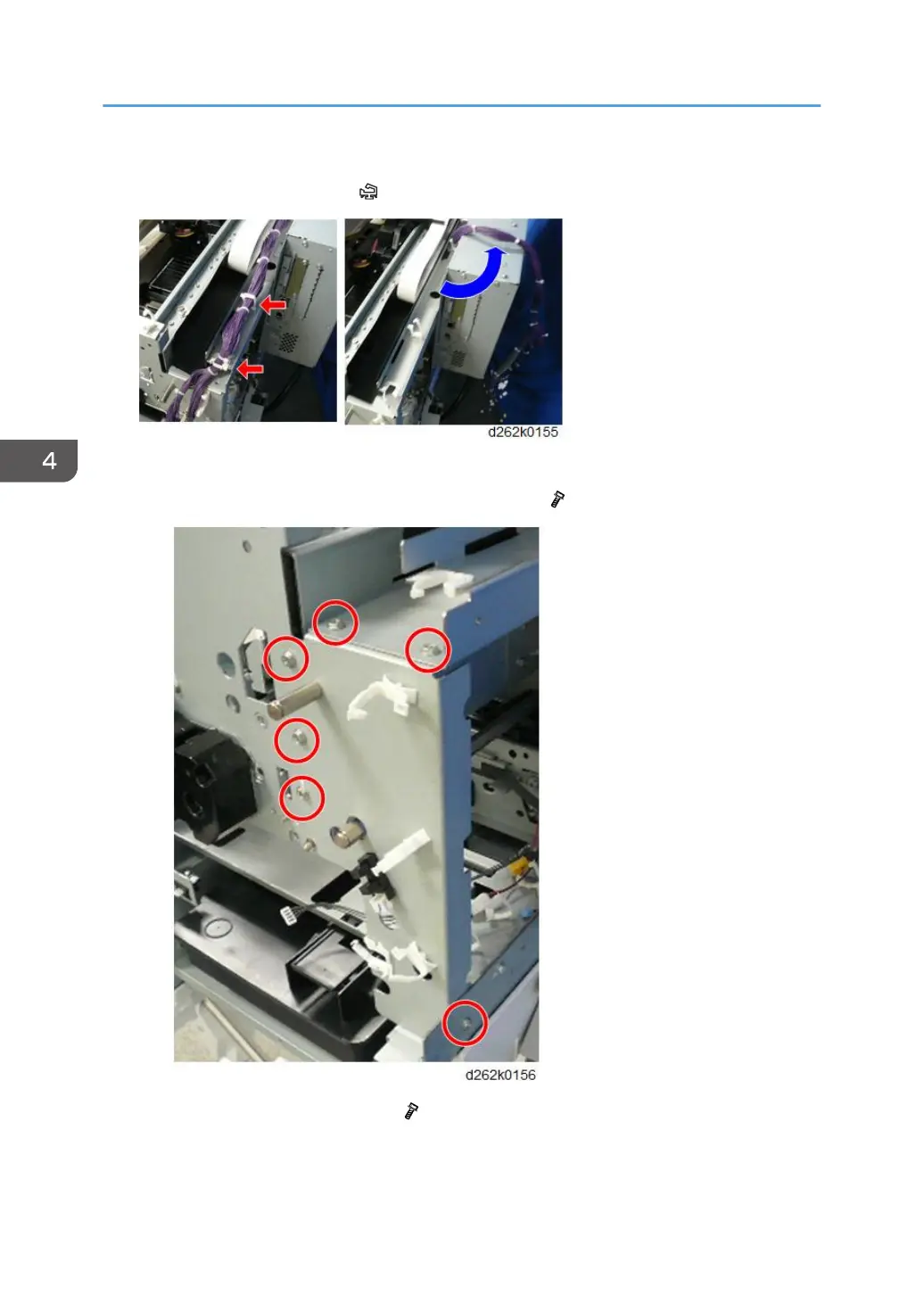

5. Release the clamps on the right back of the main unit, free the harnesses, and move them
to the back of the main unit. ( x2)
6. Remove the right panel.
1. Remove the screws on the right back of the main unit. ( x6)
2. Remove the screws on the front. ( x3)
4. Replacement and Adjustment
484
