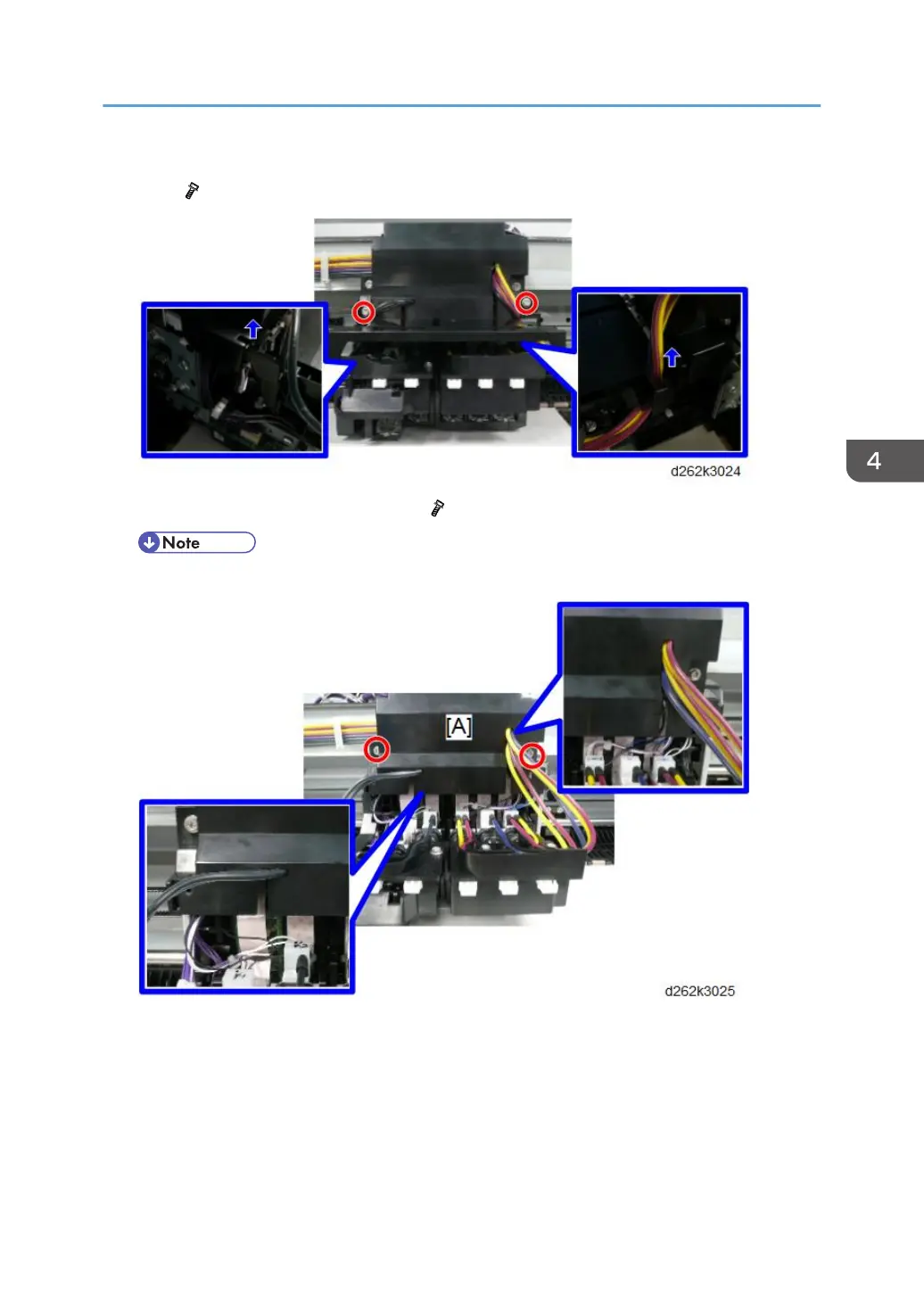

2. Remove the carriage upper cover that hold the ink tubes on both sides of the carriage
unit. ( x2)
3. Remove the carriage front cover [A]. ( x2)
• To remove the carriage front cover, remove the ink tubes from the groove.
Carriage Unit
