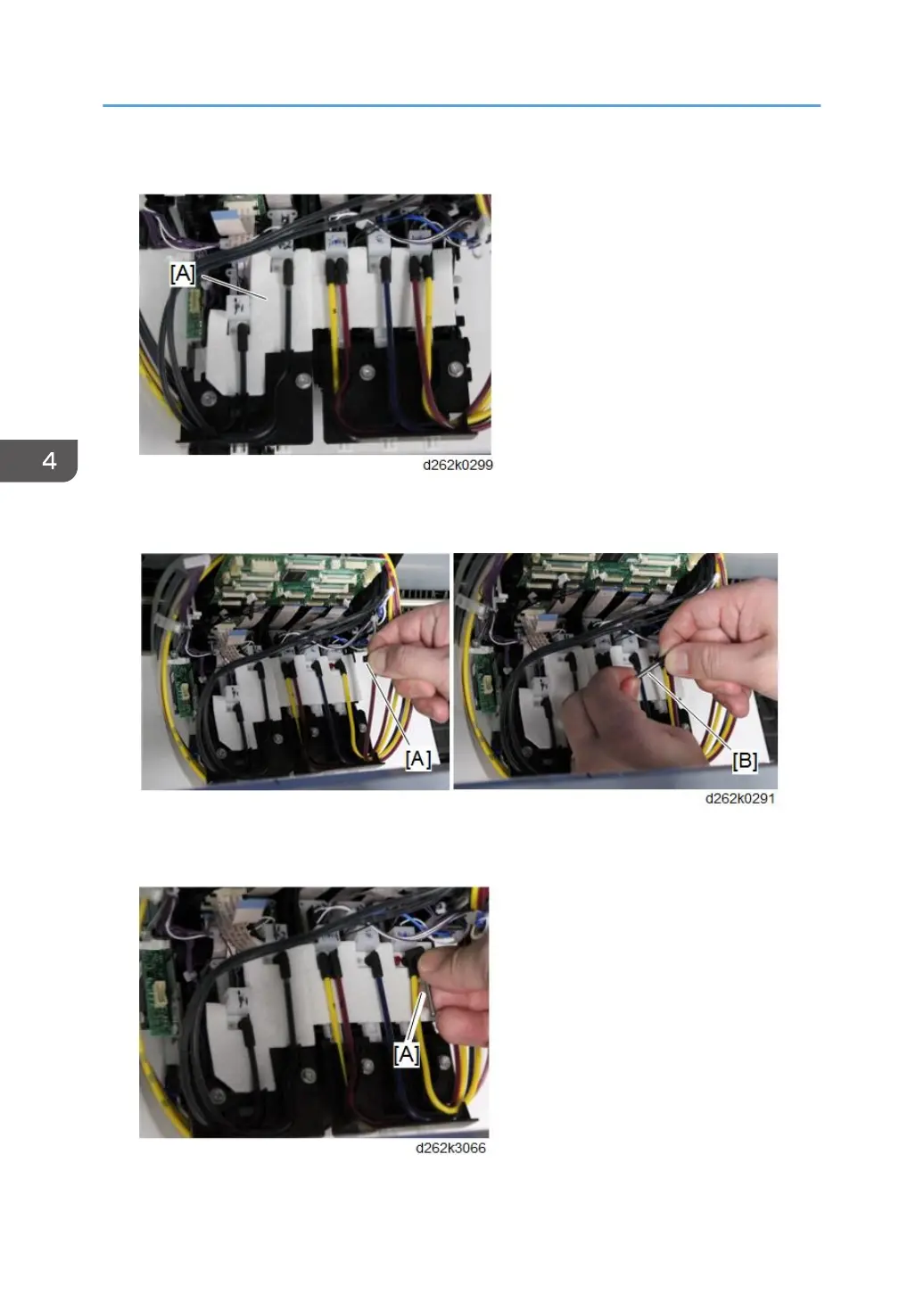

13. Attach the protective sheet [A] to the new head carriage.
14. Remove the ink tube (M2) [A] from the ink supply port of the head carriage, and plug the
uncapped plug [B] into the port of the tube.
15. Plug the capped plug [A] into the ink supply port from which the ink tube (M2) was
removed.
4. Replacement and Adjustment
512
