Ricoh MP CW2201 Service Manual

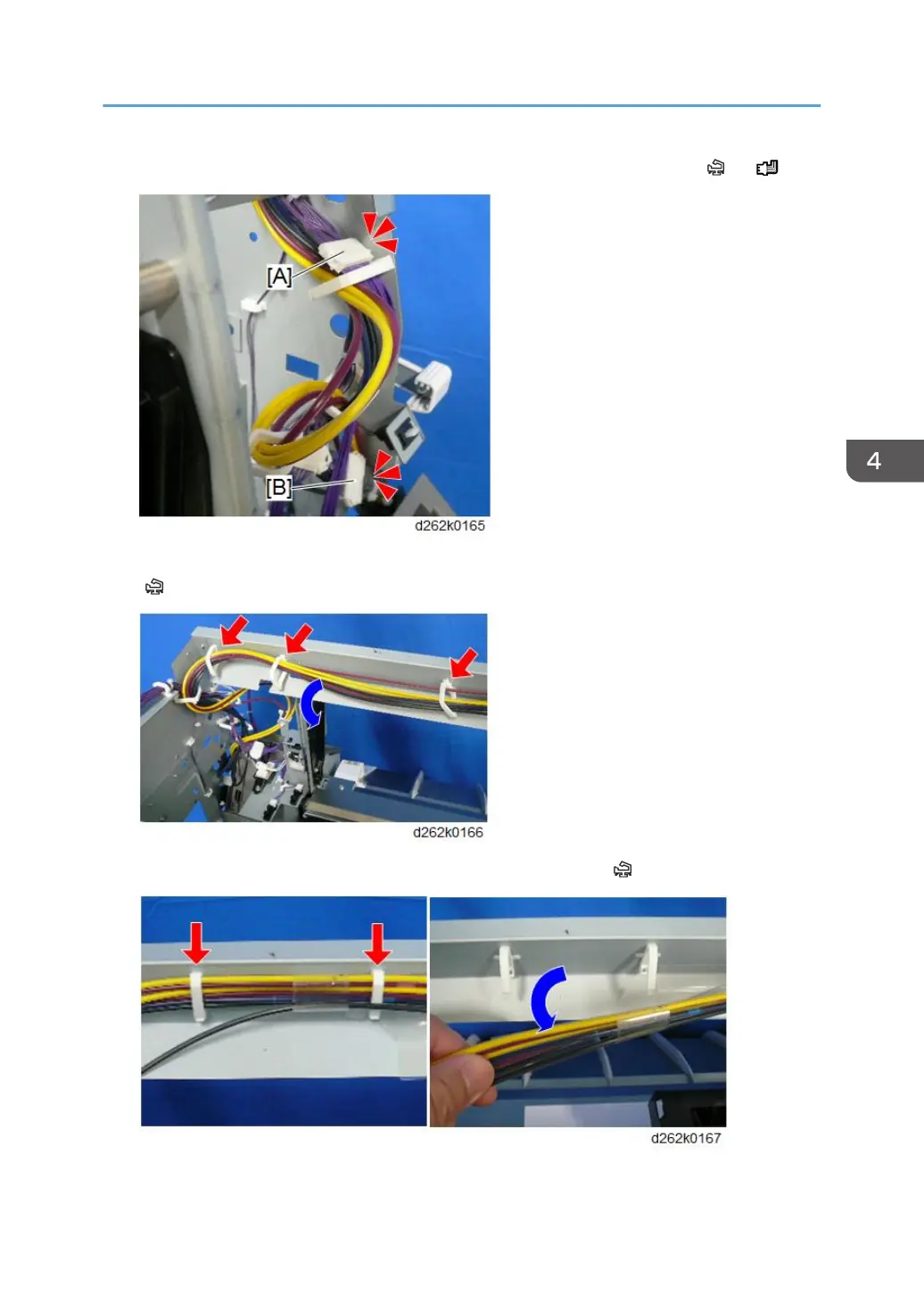

4. Free the ink supply tubes and disconnect the ink supply unit at [A] and [B] ( x2, x2).
5. On the right side of the back of the front support of the machine, free the ink supply tubes
( x3).
6. Near the center of the front support, free the ink supply tubes ( x2).
Ink Supply
523

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
