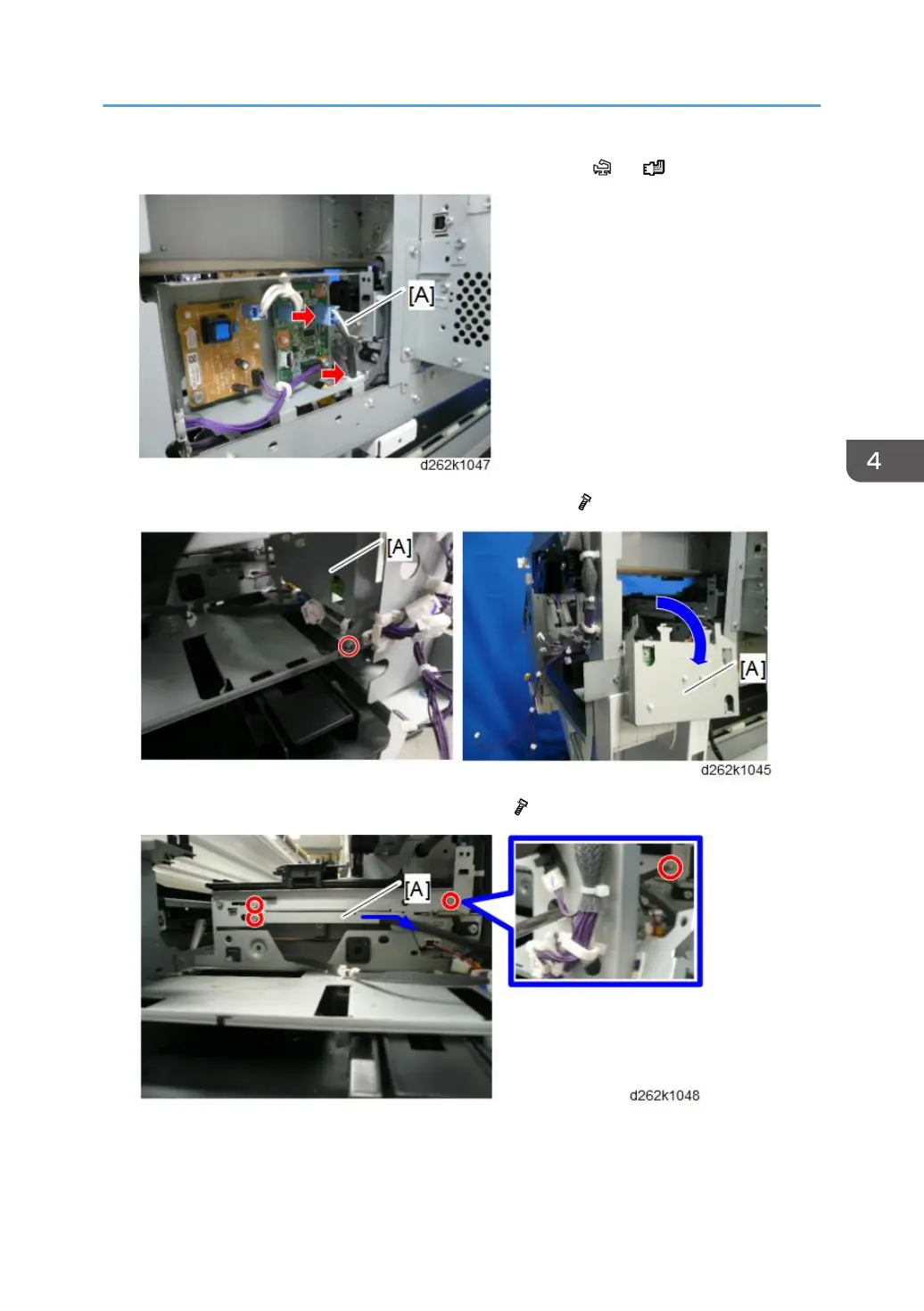

8. Remove the harness [A] from the auto-nozzle check board ( x1, x1).

9. Move the auto-nozzle check board block [A] to the right ( x1).

10. Remove the harness cover [A] and three screws ( x3).

Auto-Nozzle Check

539
