Ricoh MP CW2201 Service Manual

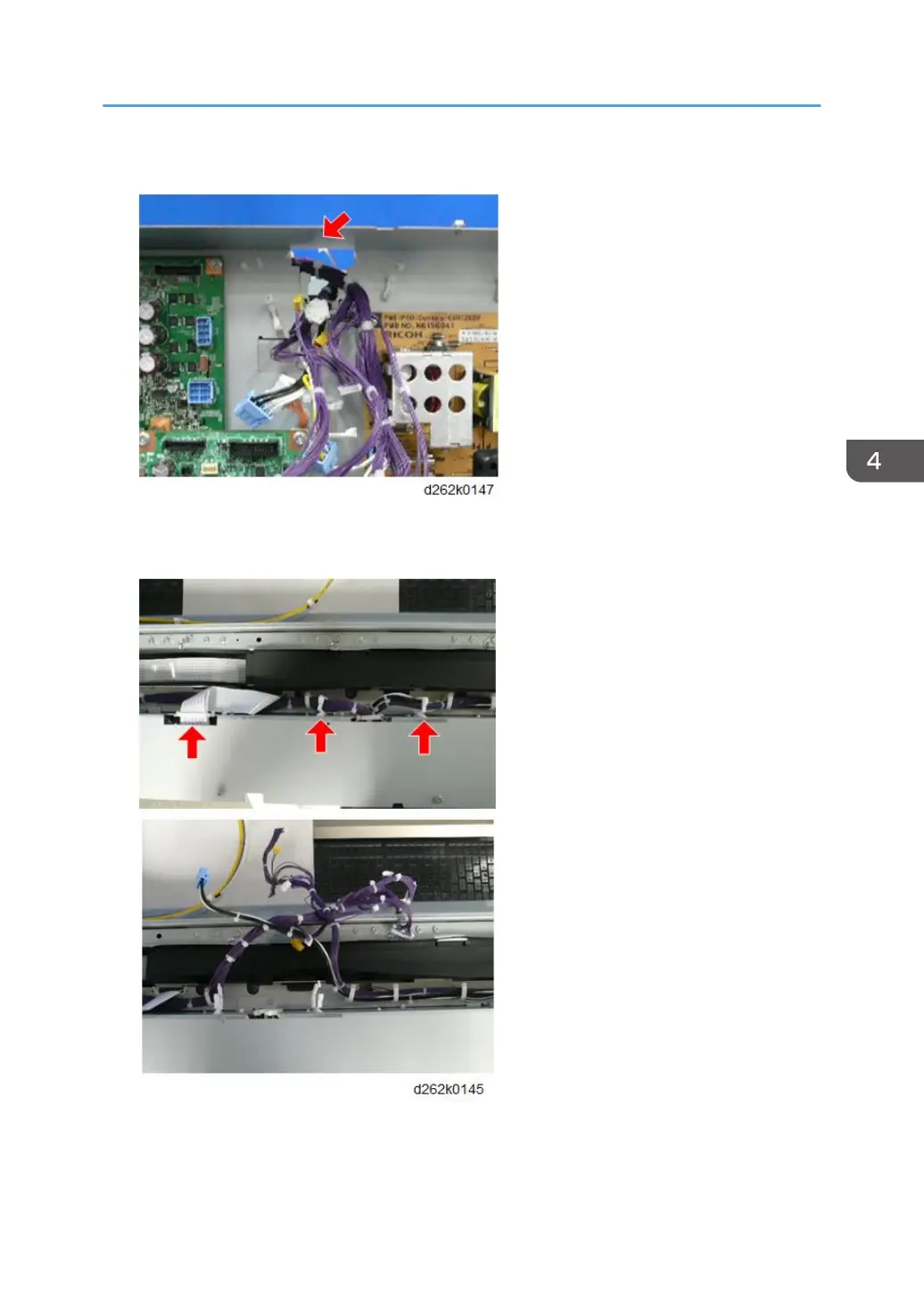

15. Release the clamps at the center back of the upper part of the PCB box.
16. Release the three clamps at the upper part of the PCB box and pull away the three cables
and FFC to the back.
Electrical Components
551

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
