Ricoh MP CW2201 Service Manual

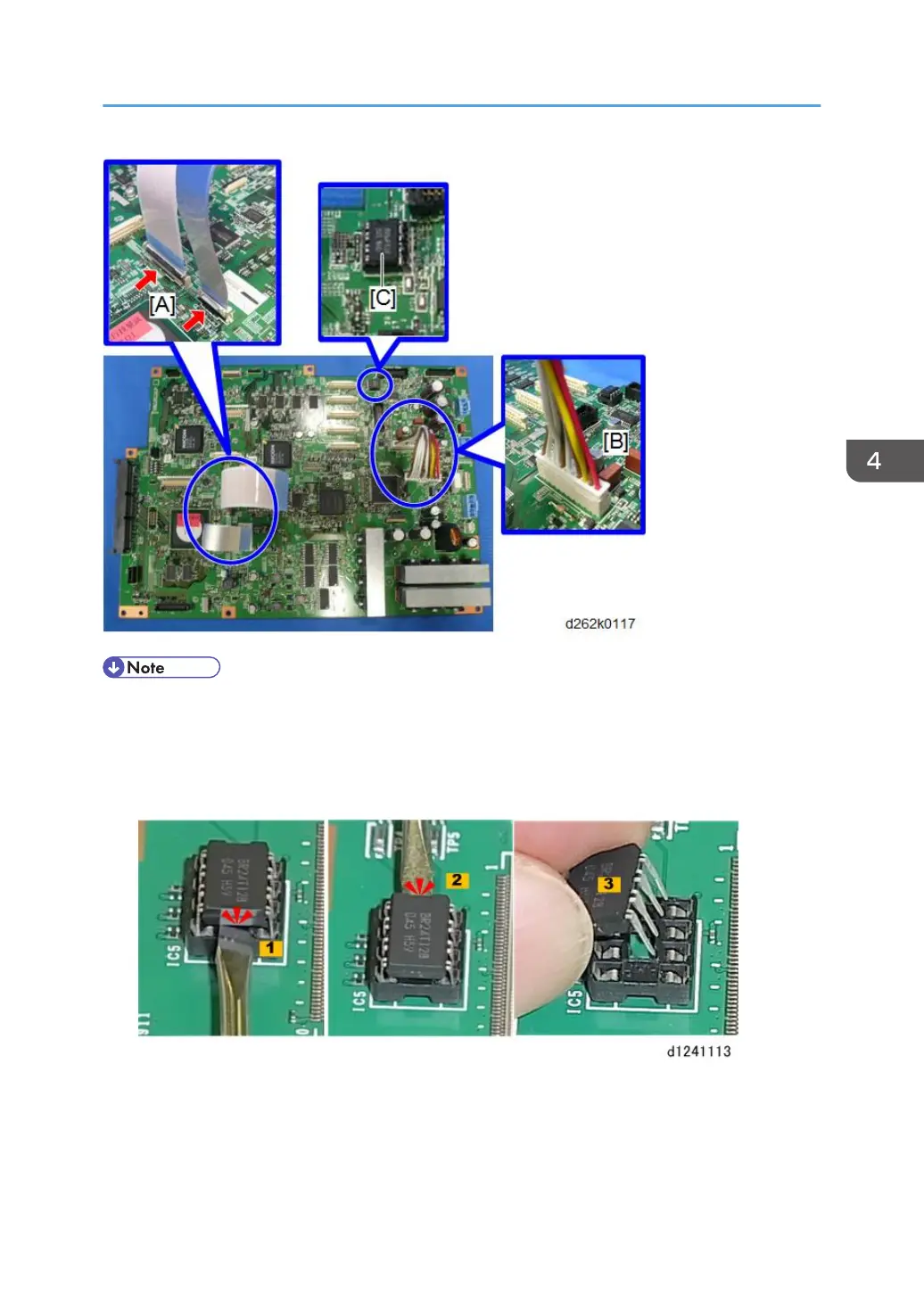

• The pins of the EEPROM are soft and easy to bend. Work carefully when you remove it.
1. Use the tip of a small screwdriver to alternately raise the top [1] and bottom [2] of the
EEPROM slightly.
2. When the EEPROM is loose, remove it [3].
Electrical Components
565

Ricoh MP CW2201 Specifications

General

Color Printing	Yes
Scan Resolution	600 dpi
Standard Interfaces	Ethernet, USB
Paper Size	A4
Operating Systems	Windows
Power Source	AC 100-240V, 50/60Hz
