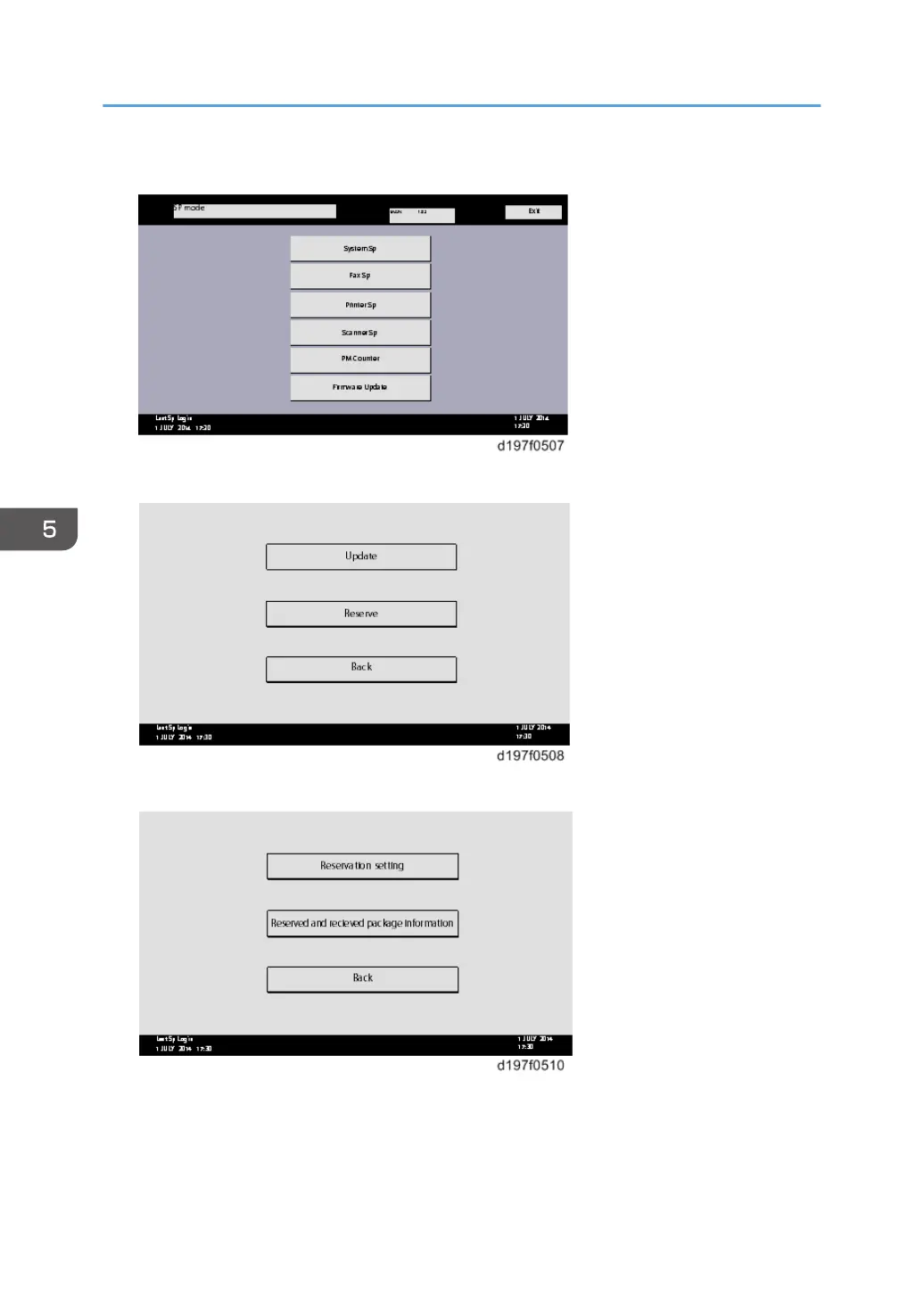

2. Touch [Firmware Update].

3. Touch [Reserve].

4. Touch [Reserve and received package information].

5. Check the information displayed.

When the package firmware is downloaded successfully, the details of the download result are

displayed as the following picture shows.
