Ricoh MP CW2201 Service Manual

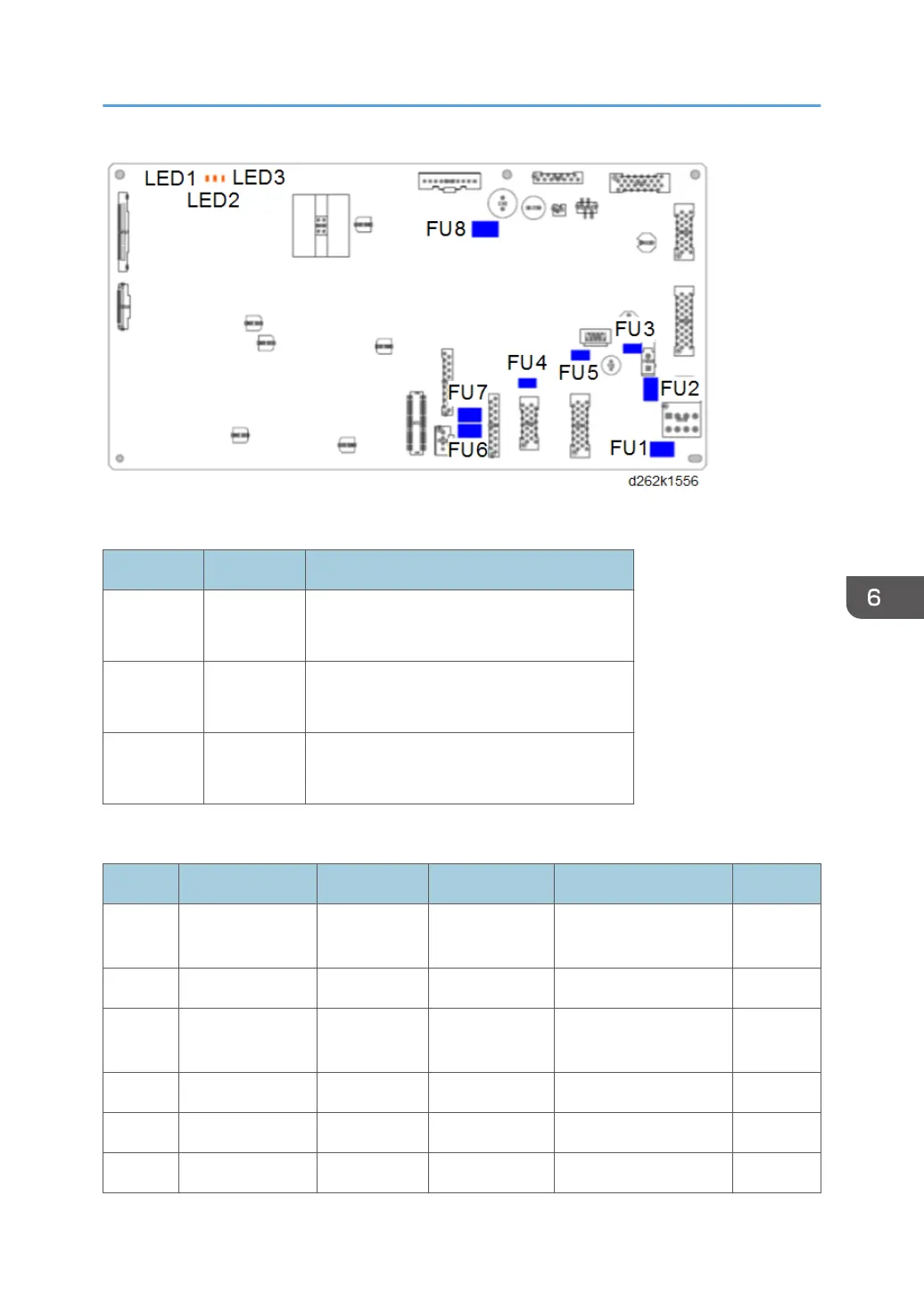

LED Status
LED Color LED Status
LED1
Yellow-
green
Flash: Normal
Not lit or Lit: Abnormal
LED2
Yellow-
green
Lit: Abnormal
Not lit: Normal
LED3 Orange
Not lit: Normal
Lit: Abnormal
FUSE
Name Output terminal Capacity Voltage Type Part No.
FU1
CN263, 254,
255
- 24V
Paper Feed Clutch,
Paper Feed Motor
-
FU2 CN268 - 24V IFBOX -
FU3
CN254, 263,
265, 266
- 5V Sensors -
FU4 CN255 - 5V RFDB -
FU5 CN269 - 5V IFBOX -
FU6 CN256 - 24V SIB -
Fuses
