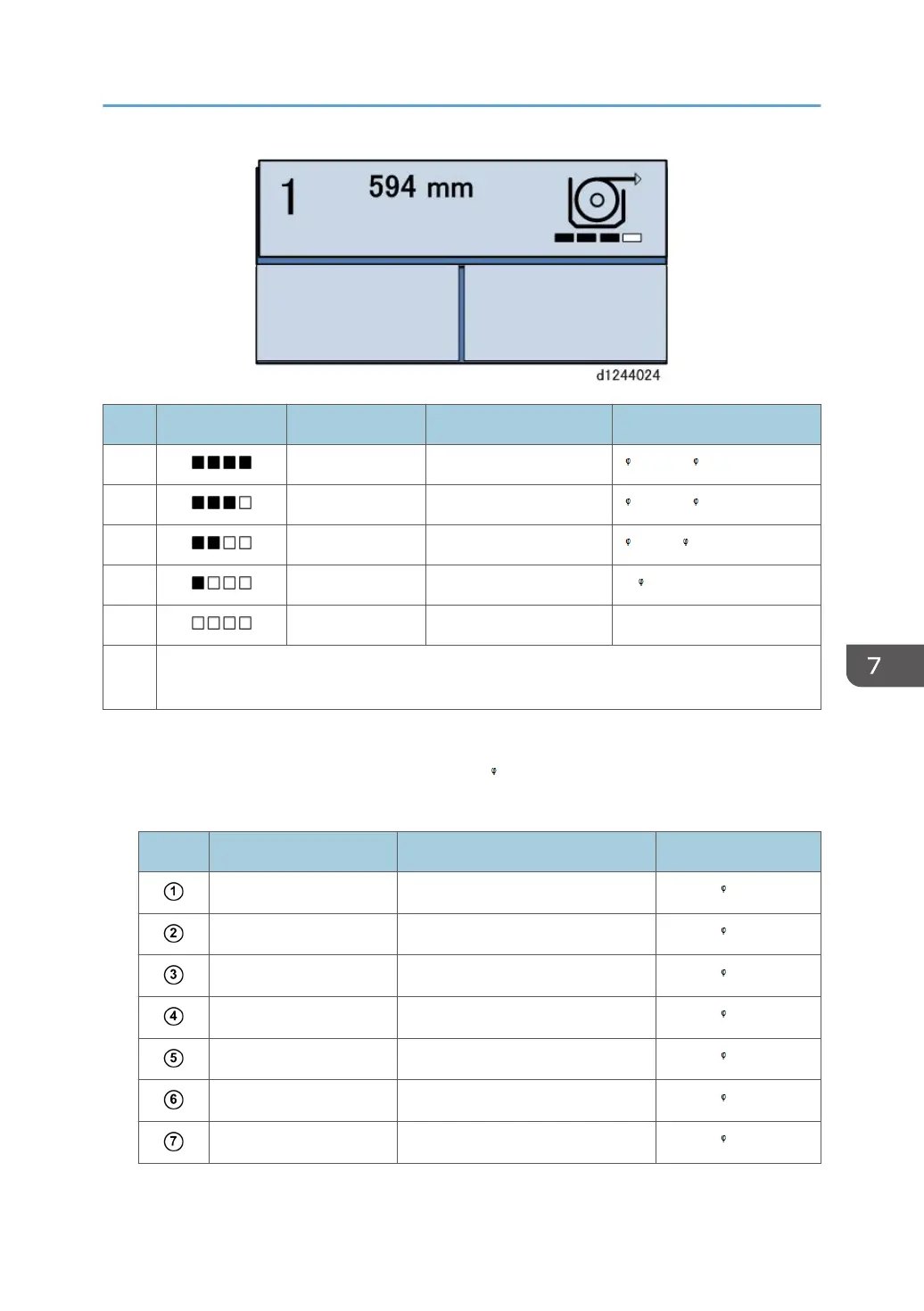

Panel Display Pulse Count Remaining % Roll Dia. (mm)
1 < 130 50 to 100% 123 to 156*
1
2 130 to 140 30 to 50% 110 to 123
3 140 to 165 10 to 30% 97 to 110
4 > 165 < 10% < 97
5 --- --- ---
*
1
The range is wide here because the same "fuzzy logic" is applied to both 2-in. and 3-in. to
compensate for the differences in diameters with these rolls.
• 100 mm = 1 pulse count
• For a 2-in. roll the maximum (Normal paper 90 m 112 mm) the half count is at "3" above.
• Vertical Feed Amount Table (100 mm = 1 pulse count)
% Remaining Pulse Count Roll Dia. (mm)
100 Less than 98 173
90 99 to 107 161
80 108 to 116 149
70 117 to 127 137
60 128 to 141 125
50 142 to 158 113
40 159 to 179 101
Paper Feed and Exit
813
