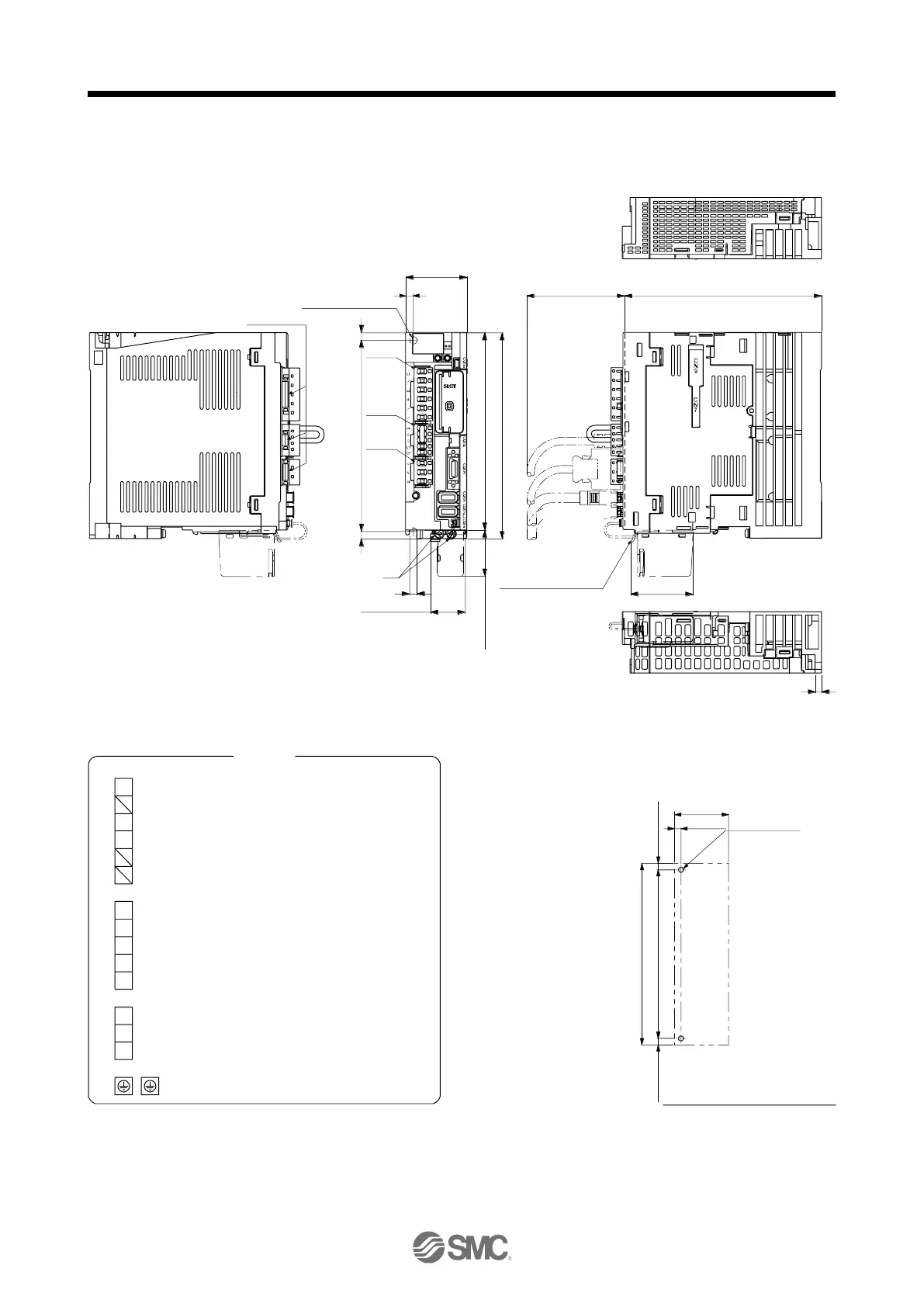

9. OUTLINE DRAWINGS

9 - 4

(3) LECSN1-T5/LECSN1-T7/ LECSN1-T8 (Scheduled release product)

[Unit: mm]

161Approx. 80

168

161

CNP2

CNP1

CNP3

φ6 mounting hole

Approx. 51

Approx. 28.4

156

With

MR-BAT6V1SET-A

Approx. 37.5

Lock knob

Mass: 1.0 [kg]

L11

L21

P+

Terminal

CNP1

CNP2

CNP3

Screw size: M4

Tightening torque: 1.2 [N•m]

N-

Mounting screw

Screw size: M5

Tightening torque: 3.24 [N•m]

156 ± 0.5

2-M5 screw

Mounting hole process drawing

Approx. 6

Approx. 50

Approx. 6

Approx. 168
