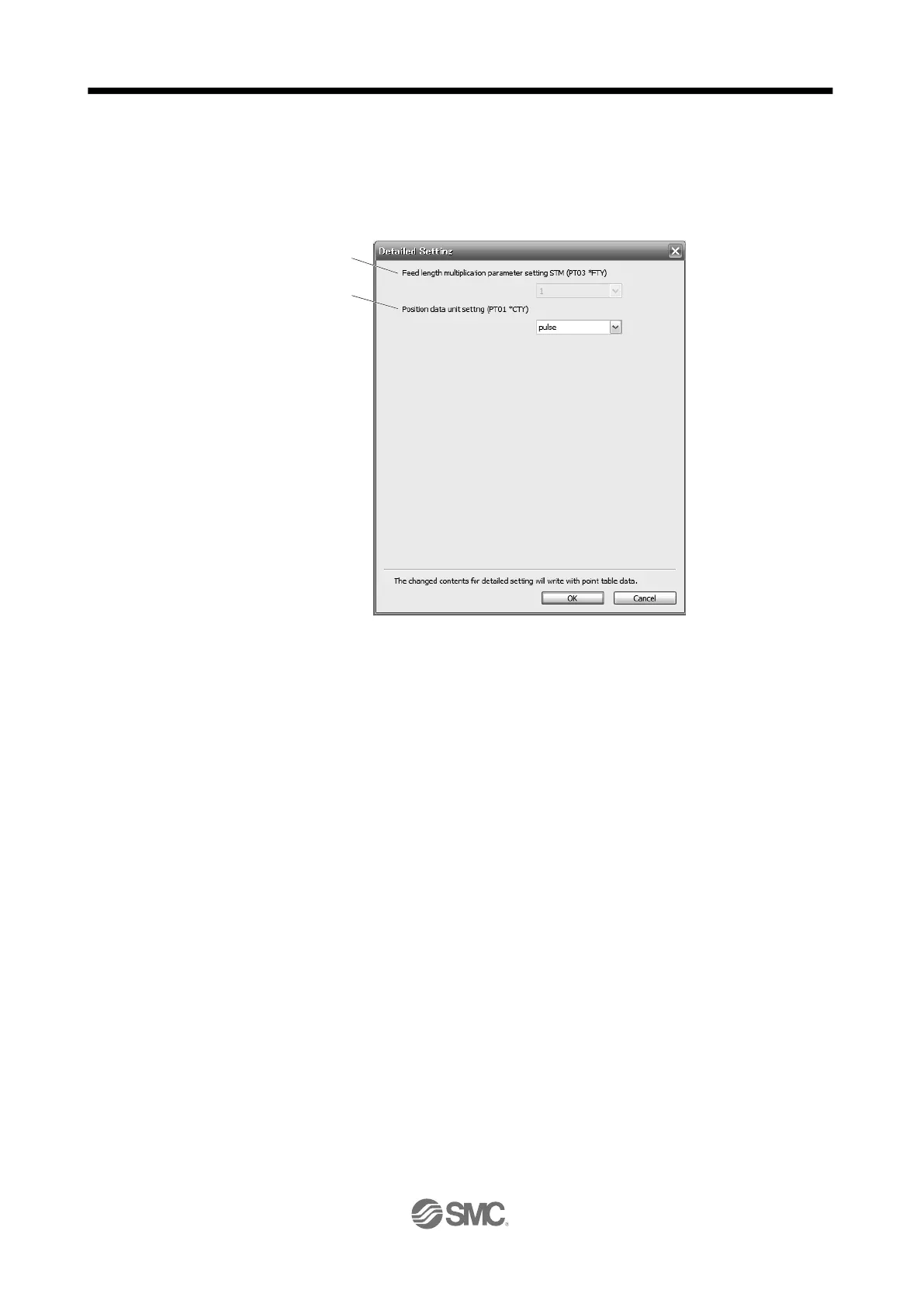

(2) Detailed setting window
The position data range and unit can be changed with the detailed setting in the point table window. For
the position data range and unit of [Pr. PT01] setting, refer to section 18.3.2. To reflect the setting for the
corresponding parameter, click "Update Project" in the point table window.
(a) Feed length multiplication parameter setting STM (PT03 *FTY): 2)
Select a feed length multiplication from 1/10/100/1000.
(b) Position data unit setting (PT01 *CTY): 3)
Select a unit of position data from mm/inch/pulse.
