SMC Networks LECSN-T Series User Manual

20 - 50
20．PROFINET COMMUNICATION
(4) Feed constant (P24722)
The following shows setting values of P24722.0 Feed and P24722.1 Shaft revolutions.
[Pr. PT01] setting
Feed
Shaft revolutions
[Pr. PT03] setting
_ 0 _ _: mm
Encoder resolution of the servo motor
1
_ _ _ 0
10
_ _ _ 1
_ 1 _ _: inch
100
_ _ _ 2
1000
_ _ _ 3
_ 2 _ _: degree
360000
1
_ _ _ 0 to _ _ _ 3
_ 3 _ _: pulse
Encoder resolution of the servo motor
1
_ _ _ 0 to _ _ _ 3
No value can be written to Feed because it is set automatically. Writing a value will be Error No. 02h (Low
or high limit exceeded).
When the command unit is mm or inch, you can change the travel distance per revolution of an output
shaft by changing Shaft revolutions.
The Shaft revolutions setting depends on the setting of "Feed length multiplication [STM]" in [Pr. PT03].
When a value other than the values shown in the table above is set for Shaft revolutions, Error No. 02h
(Low or high limit exceeded) will occur.
When the command unit is degree and pulse, the value of Shaft revolutions will be set automatically as
the above table shows. Writing a value will be Error No. 02h (Low or high limit exceeded).
Additionally, Position actual value (P24676) is calculated from Gear ratio (P24721) and Feed constant
(P24722) as follows.
Position actual value (P24676) =
Position actual internal value (P24675) × Feed constant (P24722)
Position encoder resolution (P24719) × Gear ratio (P24721)
When the unit is degree, the operation result will be limited within 0 to 359999.

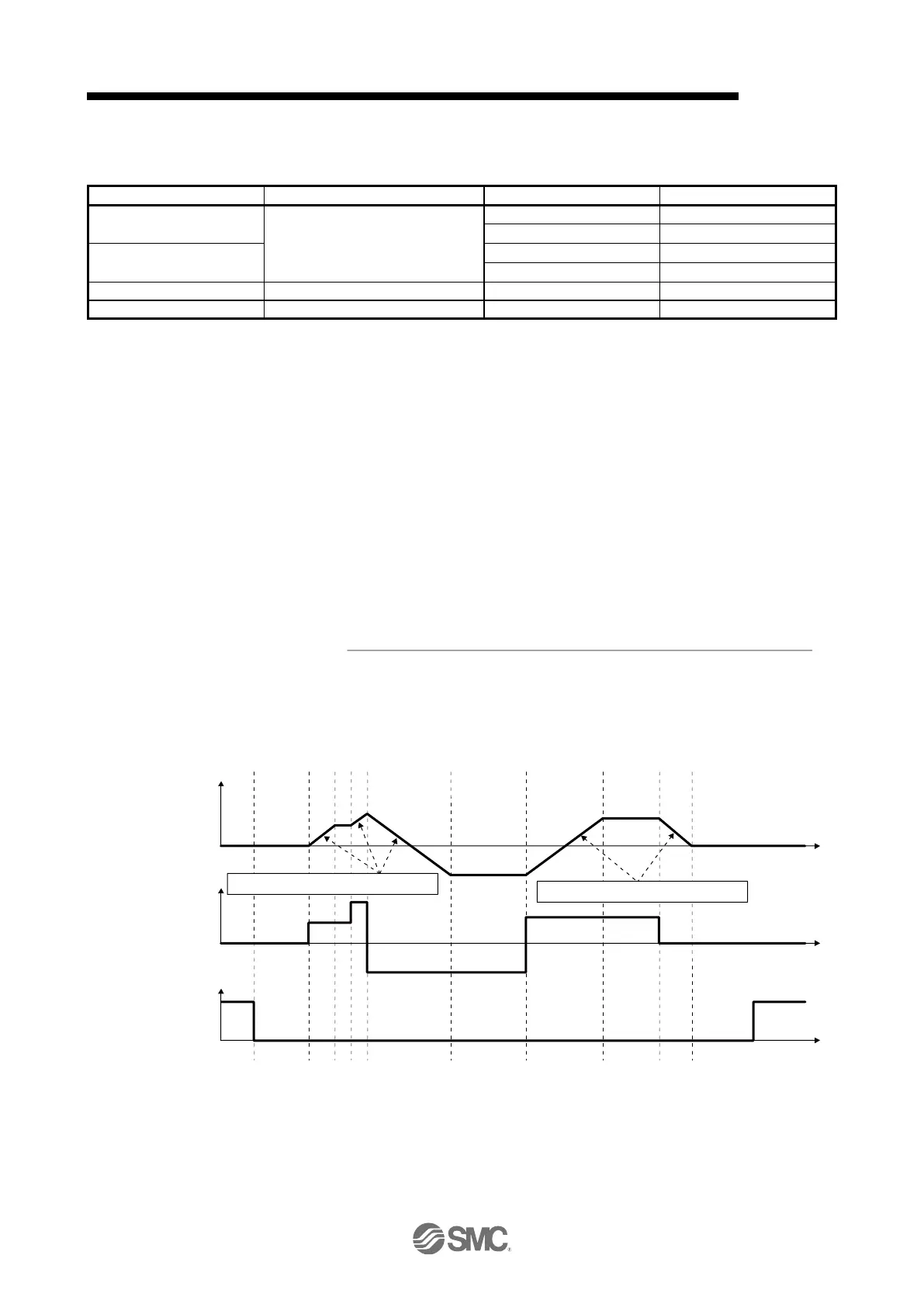

(5) The tq mode operation sequence
Halt
Controlw ord
(P24640) Bit 8
Torque demand
(P24692)
Target torque
(P24689)
t
t
t
Changed w ith Torque slope (P24711)
Changed w ith Torque slope (P24711)
