TRACe[1]|2:MEASurement:PULSe[1]|...|10:DCYCle?
This command returns the duty cycle of the selected pulse in percentage.
Algorithm
Duty Cycle = (pulse duration / pulse period) * 100
where,
pulse duration is the time difference between positive and negative
transitions of one pulse and pulse period is the time difference between
two consecutive transition occurrences of the same polarity.

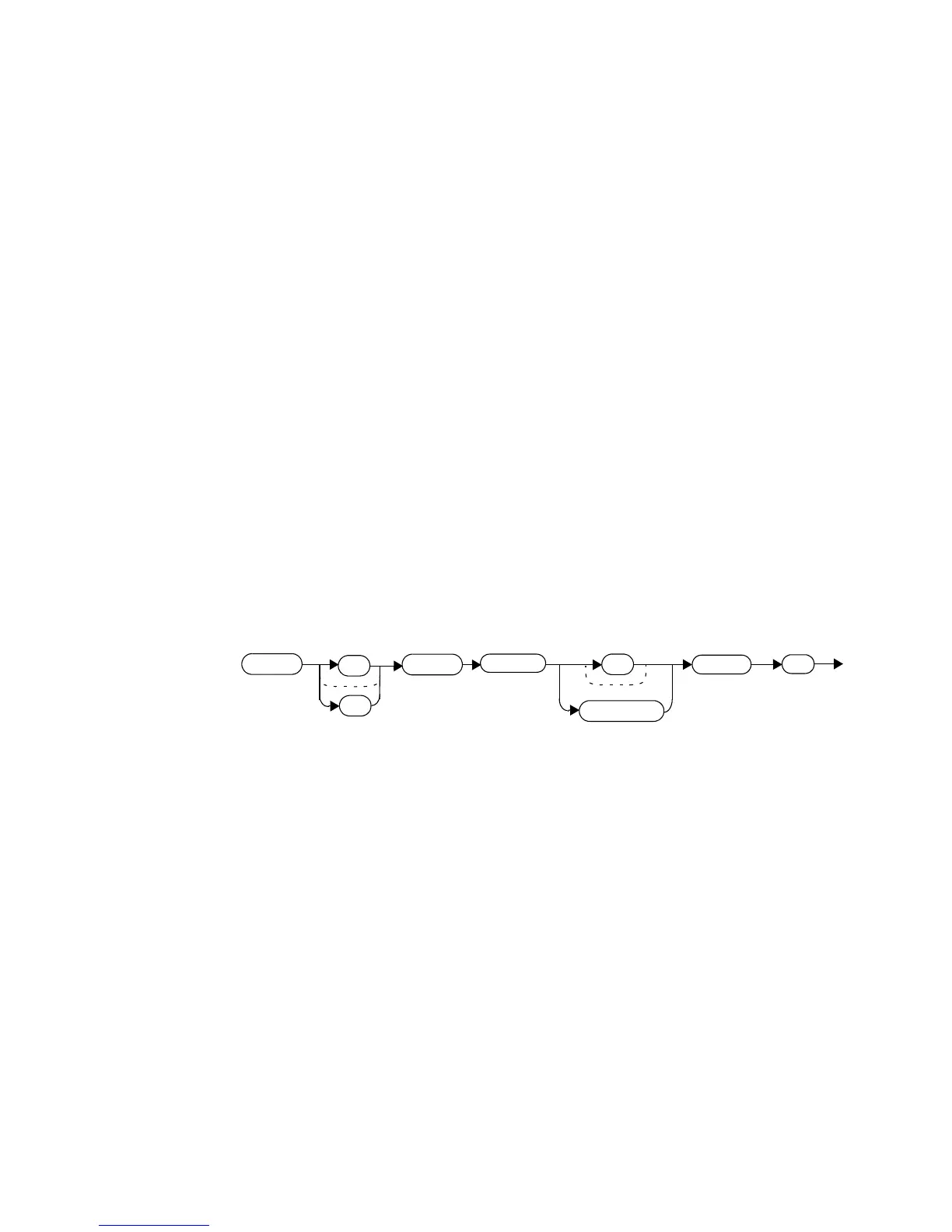

Syntax
Example
Error Messages
• The command is only applicable when N192x or E932x Sensors are
TRAC
:MEAS
1
2
:DCYC
?
1
2|...|10
:PULS
TRAC2:MEAS:PULS3:DCYC? This command returns the duty cycle of
the 3rd pulse found on trace 2.
