13 TRACe Subsystem
622 N1911A/1912A P-Series Power Meters Programming Guide
TRACe[1]|2:MEASurement:PULSe[1]|...|10:DURation?
This command returns the difference between a pulse and next transition
occurrence instants. As power pulses are by definition positive pulses, the
pulse duration is the time difference between positive and negative
transitions of one pulse.
Algorithm
If the first transition in the trace is positive,
then
PULSe:DURation = time the first negative transition occurs -time the first
positive transition occurs
else
PULSe:DURation = time the second negative transition occurs -time the
first positive transition occurs.

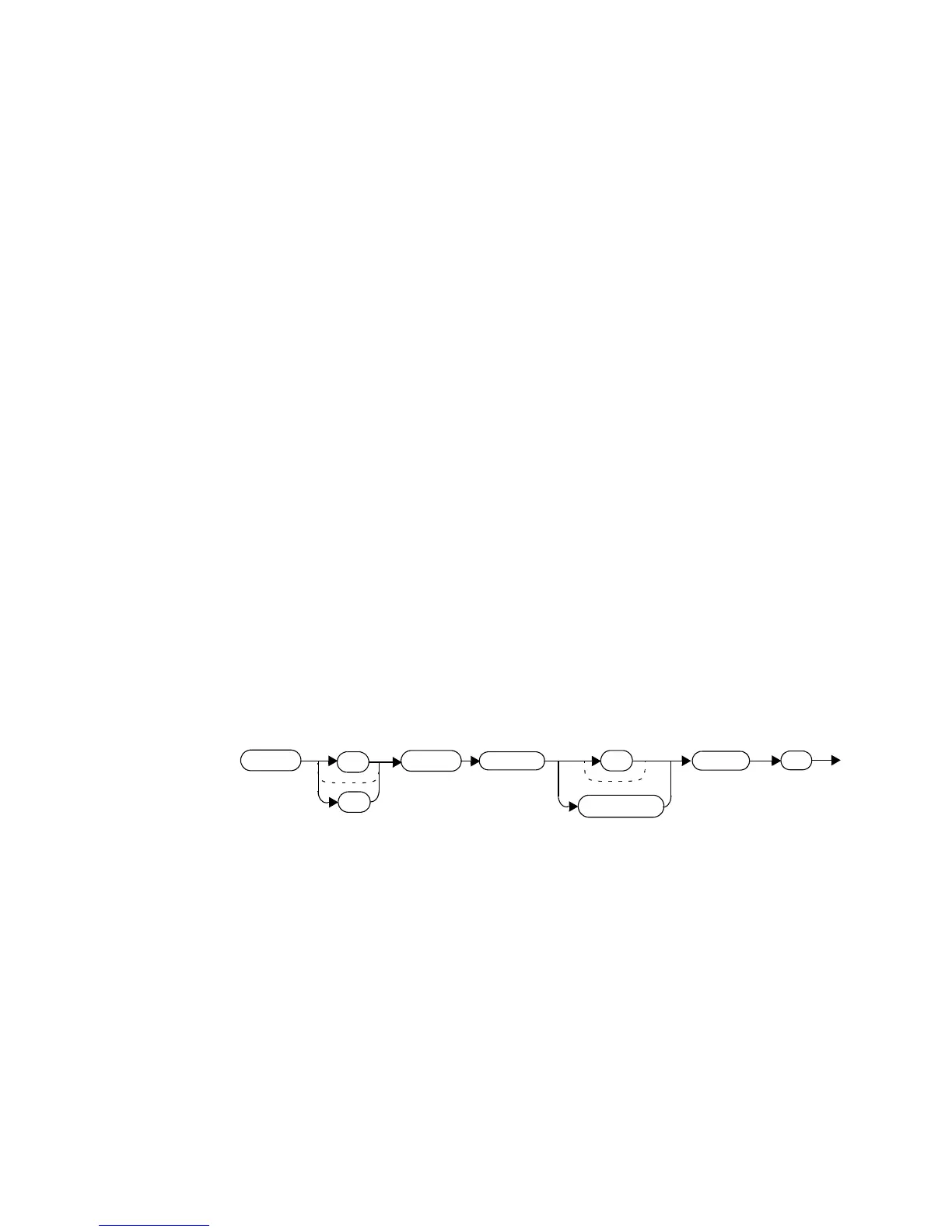

Syntax
Example
TRAC
:MEAS
1
2
:PUL
:DUR
?
1
S
2|...|10
TRAC2:MEAS:PULS3:DUR? This command returns the duration of
the 3rd pulse found on trace 2.
