Agilent Technologies N1911A Programming Guide

CALCulate Subsystem 3
N1911A/1912A P-Series Power Meters Programming Guide 183

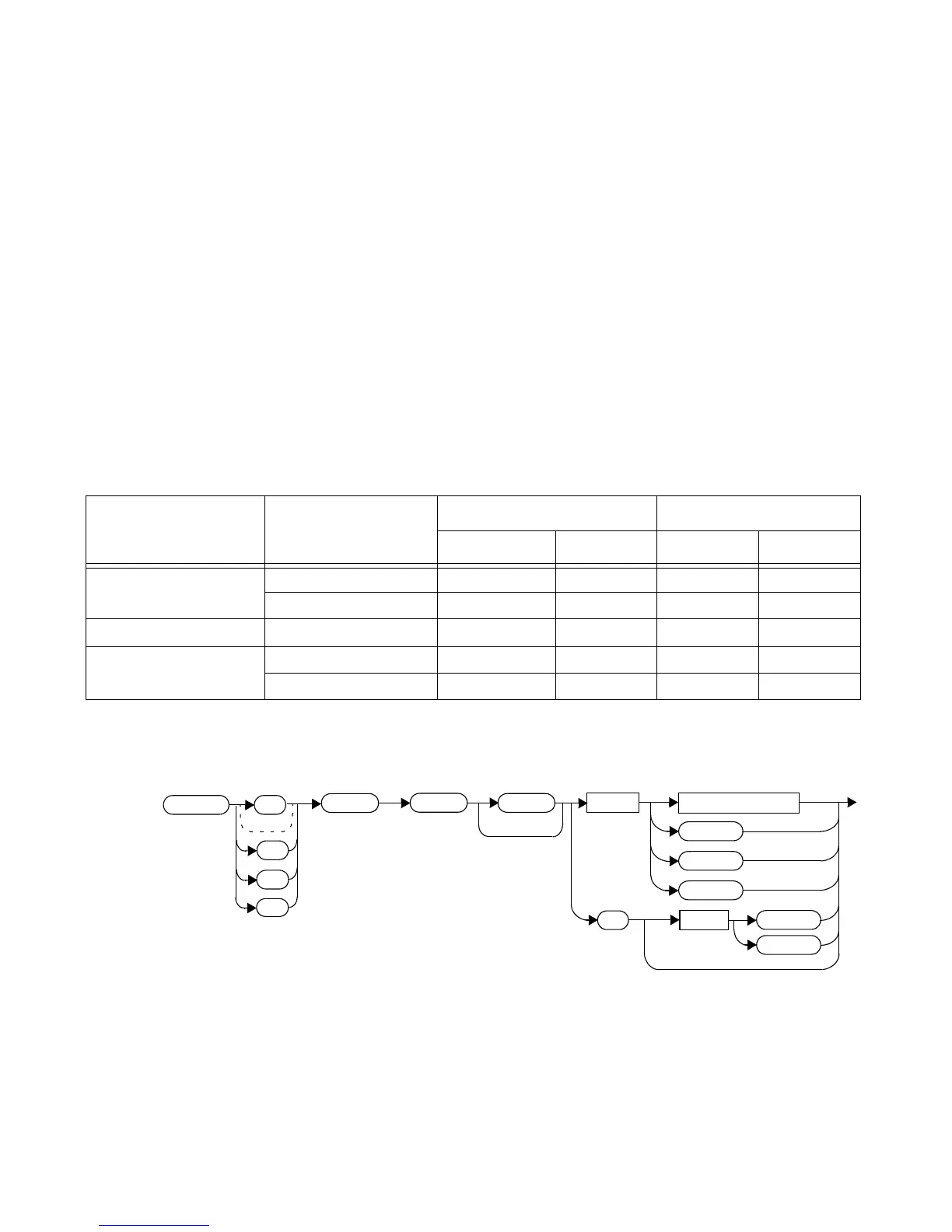

CALCulate[1]|2|3|4:LIMit:UPPer[:DATA] <numeric_value>
This command enters a value for the upper test limit for the specified
window/measurement used in the CALCulate[1]|2|3|4:LIMit
:FAIL? test. The units used are dependent on the current setting of
UNIT:POWer and CALCulate:RELative:STATe as shown in Table 3- 14.
When the measured power is greater than the value specified in
CALCulate[1]|2|3|4:LIMit:UPPer[:DATA],
CALCulate[1]|2|3|4:LIMit:FAIL? reports a fail. When the measured
level is less than or equal to the limit, a fail is not reported.
Tab le 3-1 4 Measurement Units
Syntax
Measurement Mode Measurement Type CALC:REL:STAT OFF CALC:REL:STAT ON
Linear Log Linear Log
Single Channel
Avg, Pk Watt dBm % dB
Pk–Avg % dB % dB
Ratio
Avg, Pk, Pk–Avg % dB % dB
Difference
Avg, Pk Watt dBm % dB
Pk–Avg % dB % dB
Space
?
numeric_value
DEF
MIN
MAX
MIN
MAX
Space
:LIM
:UPP
:DATA
CALC
1
2
3
4
