How Measurements are Calculated

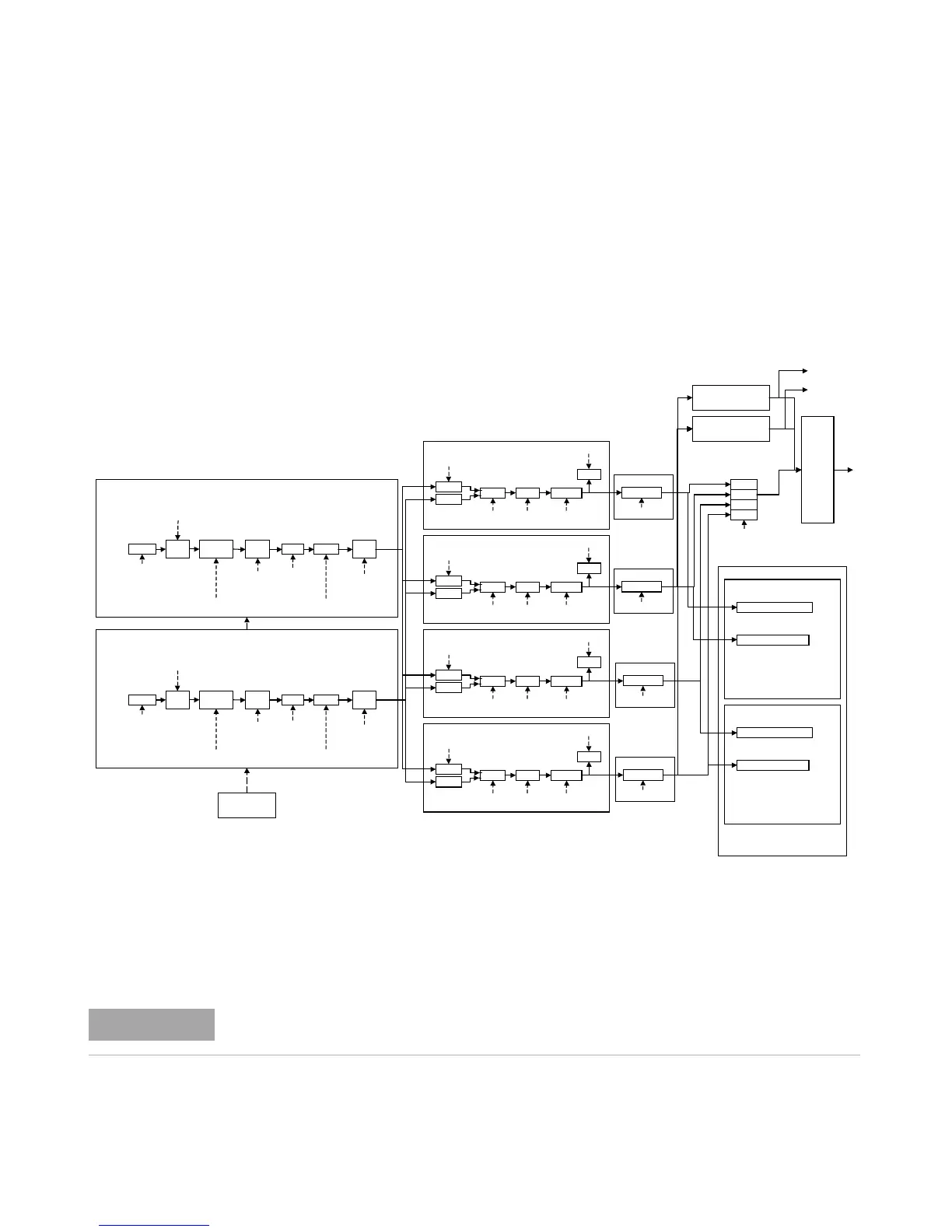

Figure 1- 6 details how measurements are calculated. It shows the order in
which the various power meter functions are implemented in the
measurement calculation.
Figure 1-6 How Measurement are Calculated
The MEASure commands in this figure can be replaced with the FETCh?
and READ? commands.
TRIGger
DISPlay
WINDow2
:FORMat
:METer
:SELect [1]|2
:NUMeric[1]:RE Solution
:NUMeric2:RESolution
Upper Meas
Lower Meas
UNIT4
Conversion
:POW
CALCulate2
Maths Offset Relative
Limits
:MATH :GAIN :REL
:LIM
Switch
Switch
:FEED
UNIT2
Conversion
:POW
UNIT3
Conversion
:POW
UNIT1
Conversion
:POW
CALCulate4
Maths Offset Relative
Limits
:MATH :GAIN :REL
:LIM
Switch
Switch
:FEED
CALCulate1
Maths Offset Relative
Limits
:MATH :GAIN :REL
:LIM
Switch
Switch
:FEED
CALCulate3
Maths Offset Relative
Limits
:MATH :GAIN :REL
:LIM
Switch
Switch
:FEED
[WINDow[1]]
:FORMat
:METer
:SELect [1]|2
:NUMeric[1]:RE Solution
:NUMeric2:RESolution
Upper Meas
Lower Meas
SENSe1
Sensor Filter
Freq.
Corr.
Offset
Duty
Cycle
:SPEed
:POW:AC:RANG
:POW:AC:RANG:AUTO:DIR
:DET:FUNC
:AVER[1]
:FREQ
:CORR:CFAC
:CORR:CSET
:CORR:GAIN2
:CORR:LOSS2
:CORR:DCYC
Video
Filter
Data
Selection
:BAND:VID (B/W)
:AVER2 (video averaging)
:SWEep:TIME:GATE:DELay
:SWEep:TIME:GATE:LENGth
SENSe2
Sensor Filter
Freq.
Corr.
Offset
Duty
Cycle
:SPEed
:POW:AC:RANG
:POW:AC:RANG:AUTO:DIR
:DET:FUNC
:AVER[1]
:FREQ
:CORR:CFAC
:CORR:CSET
:CORR:GAIN2
:CORR:LOSS2
:CORR:DCYC
Video
Filter
Data
Selection
:BAND:VID (B/W)
:AVER2 (video averaging)
:SWEep:TIME:GATE:DELay
:SWEep:TIME:GATE:LENGth
:CONTrast
:ENABle
:FORMat
FORMat
Switch
Switch
Switch
Switch
MEAS?
READ?
FETC?
CONF
TRACe:DATA?
“TRACe1”
TRACe:DATA?
“TRACe2”
WINDow1
WINDow2
All references to Channel B in the above diagram refer to the N1912A only.
To Next Page
