RFL Electronics GARD 8000 - Figure 7-2. Chassis Configuration Settings Web Page for 6 U Chassis with Redundancy

To Next Page

To Previous Page

Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-3 973.334.3100

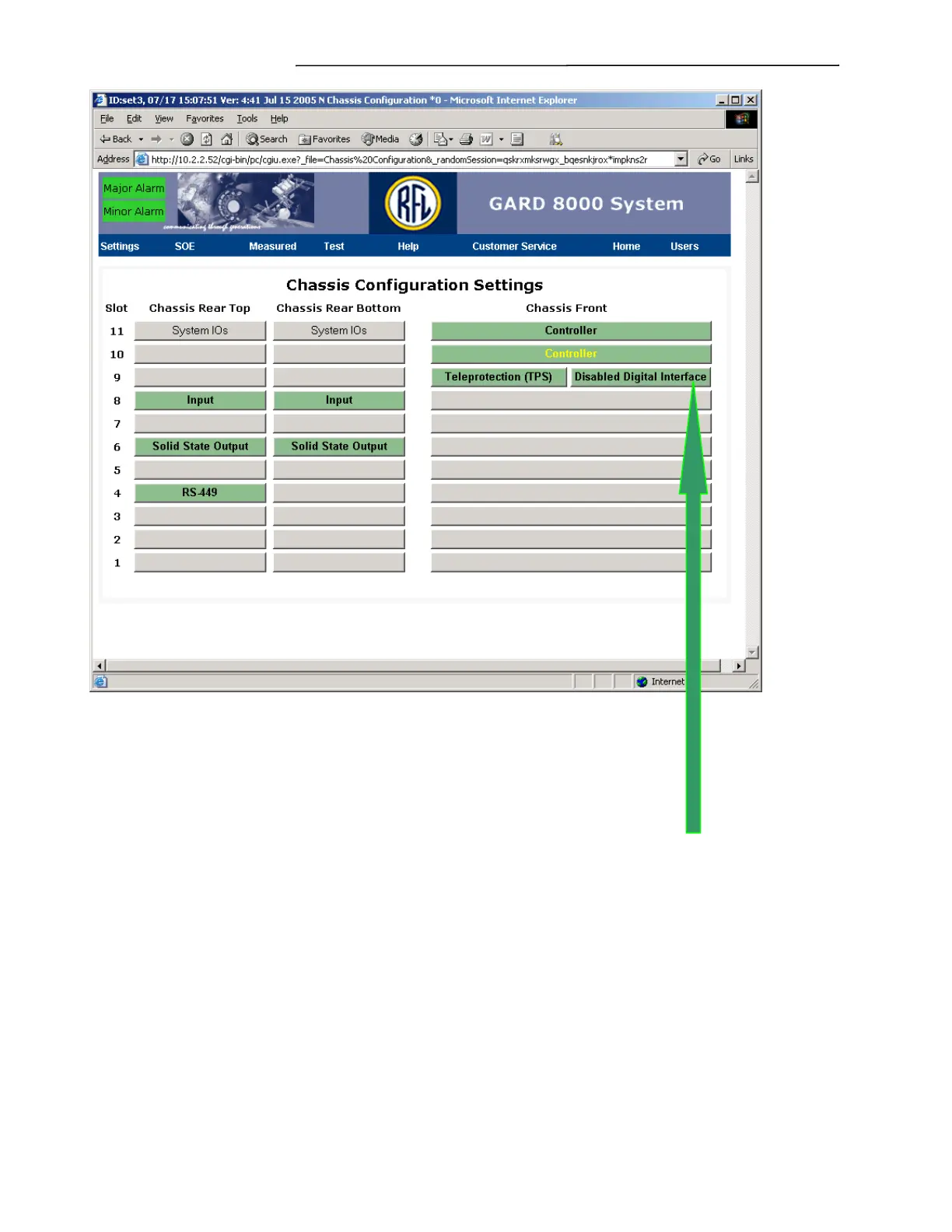

Figure 7-2. Chassis Configuration Settings web page for 6U Chassis With Redundancy

7.2.1 INPUT MODULE SETTINGS

This slot will show “Disabled Digital Interface”until one of the

base system interfaces (RS-449, X.21, V.35) are configured.

However if your system has the optional G.703 built in

interface, this slot will show “G.703”
