RFL Electronics GARD 8000 - 16.3 DNP3 WEB PAGE SET-UP

To Next Page

To Previous Page

GARD DNP Configuration and SNMP Trap Agent

GARD 8000 SYS RFL Electronics

April 23, 2015 16-3 973.334.3100

16.3 DNP3 WEB PAGE SET-UP

The DNP configuration web page must be configured before any other DNP parameters are set.

From the Home page select Settings > Chassis Configuration.

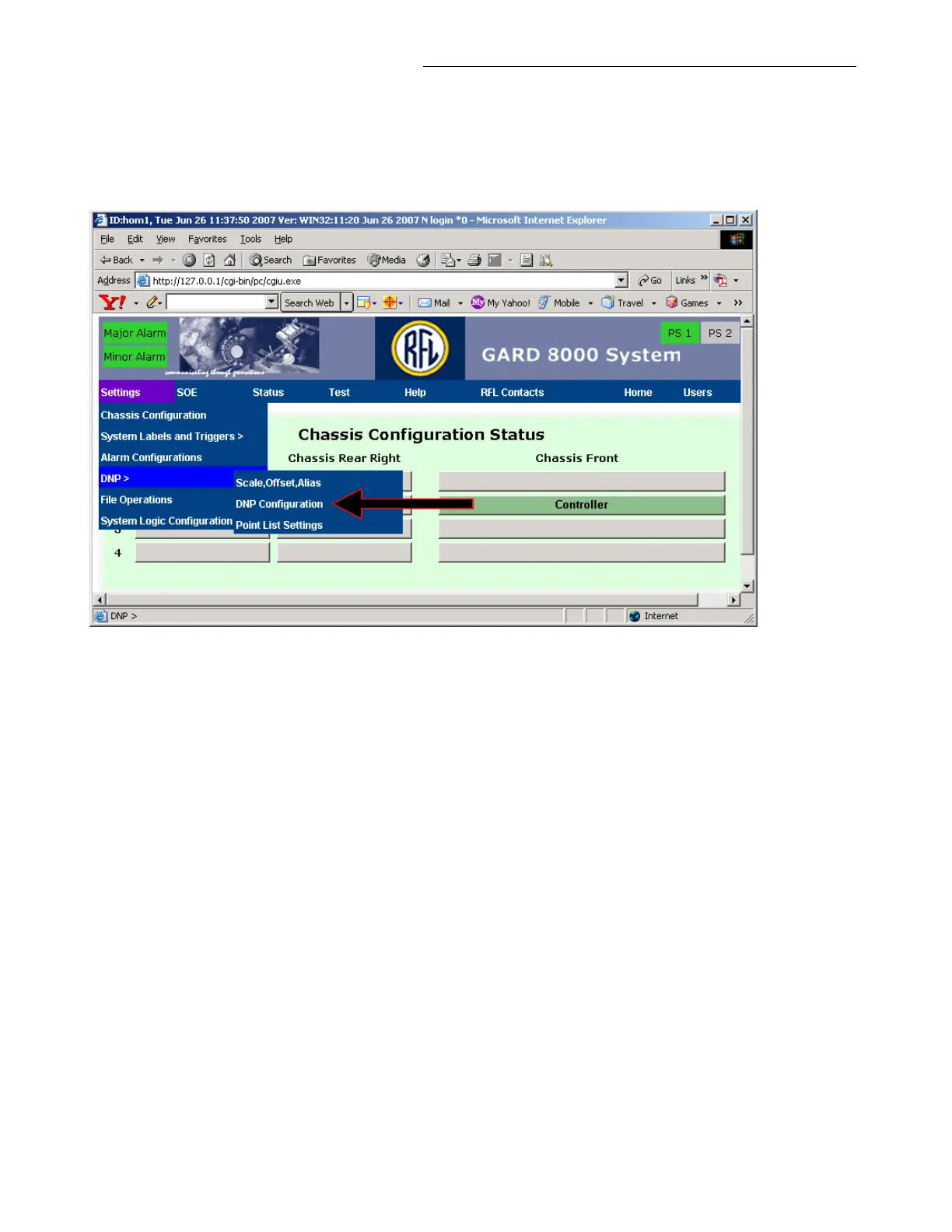

Then select Settings > DNP > DNP Configuration as shown below.

Figure 16-3. DNP Configuration

The following web page will appear.
