RFL Electronics GARD 8000 - Figure 13-11. Current Differential Inputs, Schematic Diagram

Current Differential Relay
GARD 8000 SYS RFL Electronics
June 20, 2014 13-10 973.334.3100
TB2-13
TB2-14
TB2-15
TB2-16
TB2-17
TB2-18
TB2-19
TB2-20
TB2-21
TB2-22
TB2-23
TB2-24
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
6 Input
Slot 2 Right
MODULE1
LOGIC BITS
9 - 15
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input Mapping
1
2
TRIG6
1
2
TRIG5
BUF
BUF
INPUT_STATUS_BIT_0
INPUT_STATUS_BIT_1
INPUT_STATUS_BIT_2
INPUT_STATUS_BIT_3
INPUT_STATUS_BIT_4
INPUT_STATUS_BIT_5
INPUT_STATUS_BIT_6
INPUT_STATUS_BIT_7
INPUT_89b
TRIP_DISABLE
U22
U16
STATUS_BIT_0
IN
OUT
2
1
STATUS_BIT_1
STATUS_BIT_2
STATUS_BIT_3
STATUS_BIT_4
STATUS_BIT_5
STATUS_BIT_6
STATUS_BIT_7
TIMER
NUMBER = 1
ATT_DEC = 1_1
IN_89b
TRIP_DISABLE_IN
CURRENT_DIFF
LOGIC BUS RX: 100-123 (LEN=24
LOGIC BUS TX: 124-147 (LEN=24)
STATUS_BIT_0_RX
STATUS_BIT_1_RX
STATUS_BIT_2_RX
STATUS_BIT_3_RX
STATUS_BIT_4_RX
STATUS_BIT_5_RX
STATUS_BIT_6_RX
STATUS_BIT_7_RX
STARTUP_MODE
BACKUP_MODE
MINOR_ALARM
MAJOR_ALARM
SINGLE_POLE
LOL_OC_ALARM
LCCT_ALARM
OUT_OF_SERVICE
COMMS1_FAIL
PH_A_TRIP
PH_B_TRIP
PH_C_TRIP
PH_G_TRIP
U7

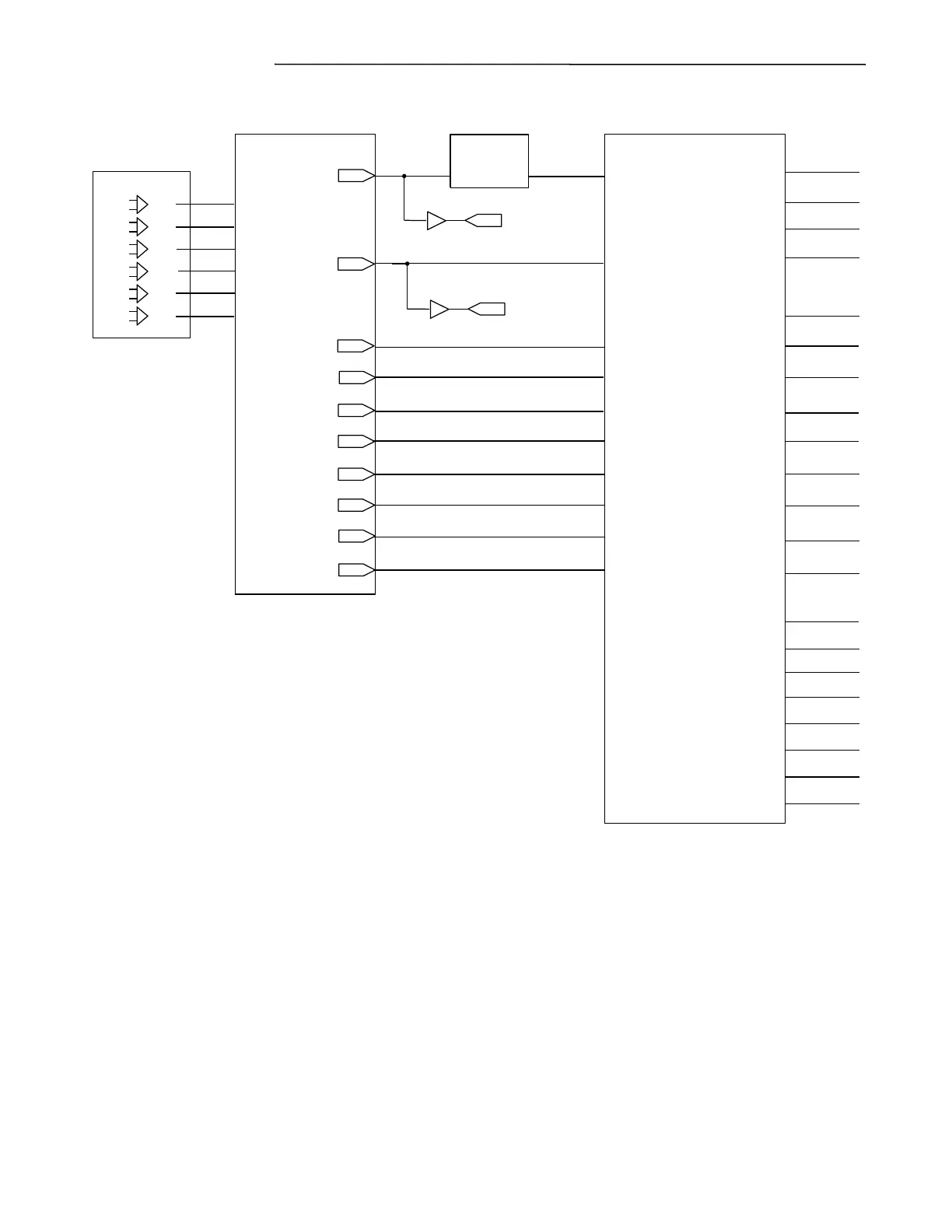

Figure 13-11. Current Differential Inputs, Schematic Diagram
The logic inside the ‘current differential’ block on the schematic is fixed as delivered from the factory
but can be custom ordered for your application. While the proven logic in the current differential relay
is not changed, the input and output signals of the current differential block can be customized to
provide different functionality for different applications.
The physical inputs (in this example Inputs 1 – 6) are mapped on the webpage to logic inputs. Any
physical input can be freely assigned to any number of logical inputs.
