Chassis Configuration Settings
GARD 8000 SYS RFL Electronics
April 1, 2012 7-103 973.334.3100
7.5.2 SAVE FILE TO PC

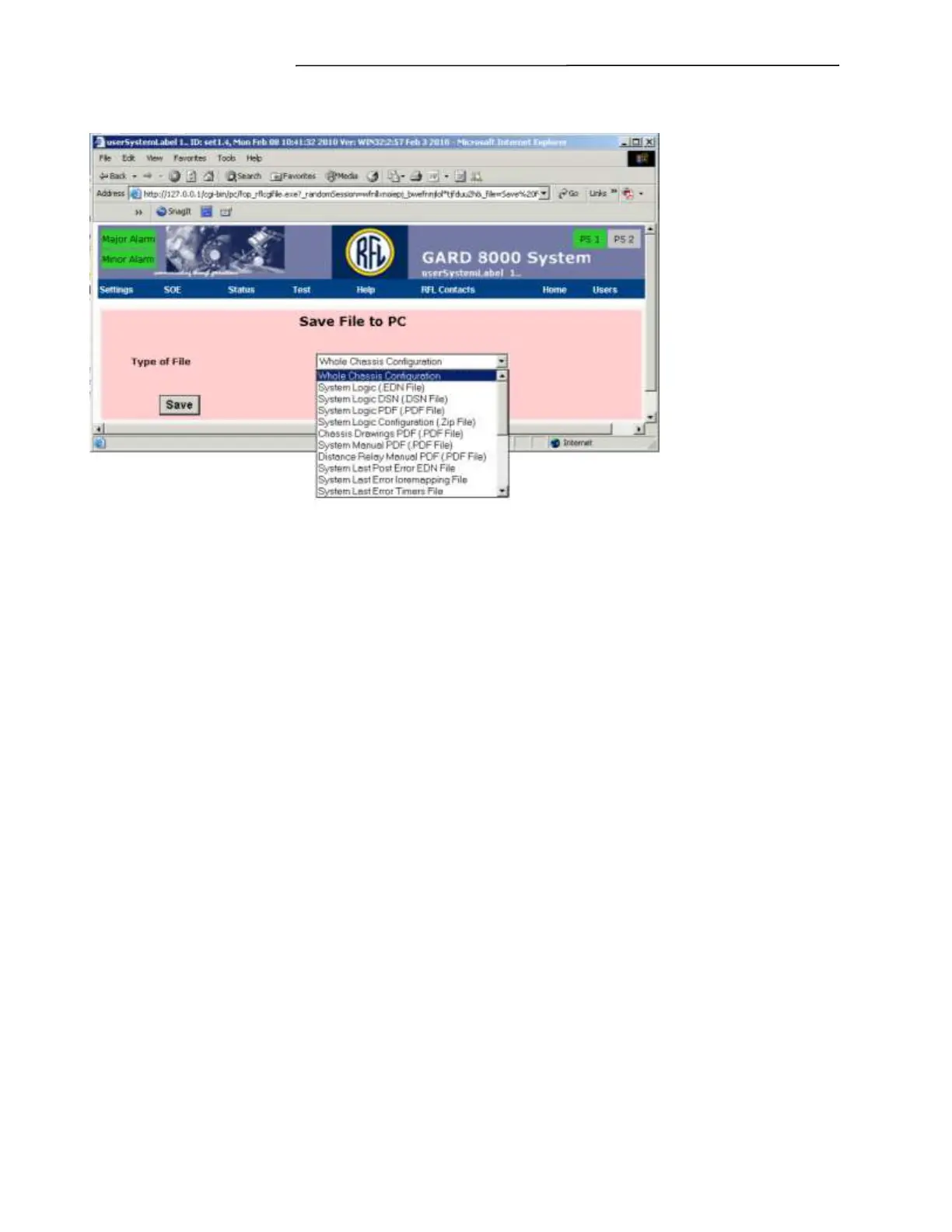

Figure 7-64. Save File to PC web page
The following files appear as choices in the “Save file to PC” pulldown menu.
Whole Chassis Configuration
This file contains all of the configuration settings for the GARD unit; it can be saved to a PC for
archiving.
System Logic (.EDN File)
This file contains the actual system logic. It maybe saved to a PC and loaded to other GARD units.
System Logic DSN (.DSN file)
This file is the ORCAD source file that is needed to edit the logic. It is not used by the GARD, merely
stored on it so that it can be saved to a PC and editing of the logic can be done.
System Logic PDF (.PDF File)
This file is a Viewable / printable copy of the logic schematic created from the ORCAD source file. It
is not used by the GARD, merely stored on it so that it can be saved to a PC and viewed or printed with
Adobe Acrobat.
System Logic Configuration (.ZIP file)
This file contains the following files in a Zip format:
System Logic (.EDN File)
System Logic DSN (.DSN File)
System Logic PDF (.PDF File)
Chassis Drawing (.PDF File)
This file contains GARD layout and application drawings specific to each customer.
