Current Differential Relay

GARD 8000 SYS RFL Electronics

June 20, 2014 13-40 973.334.3100

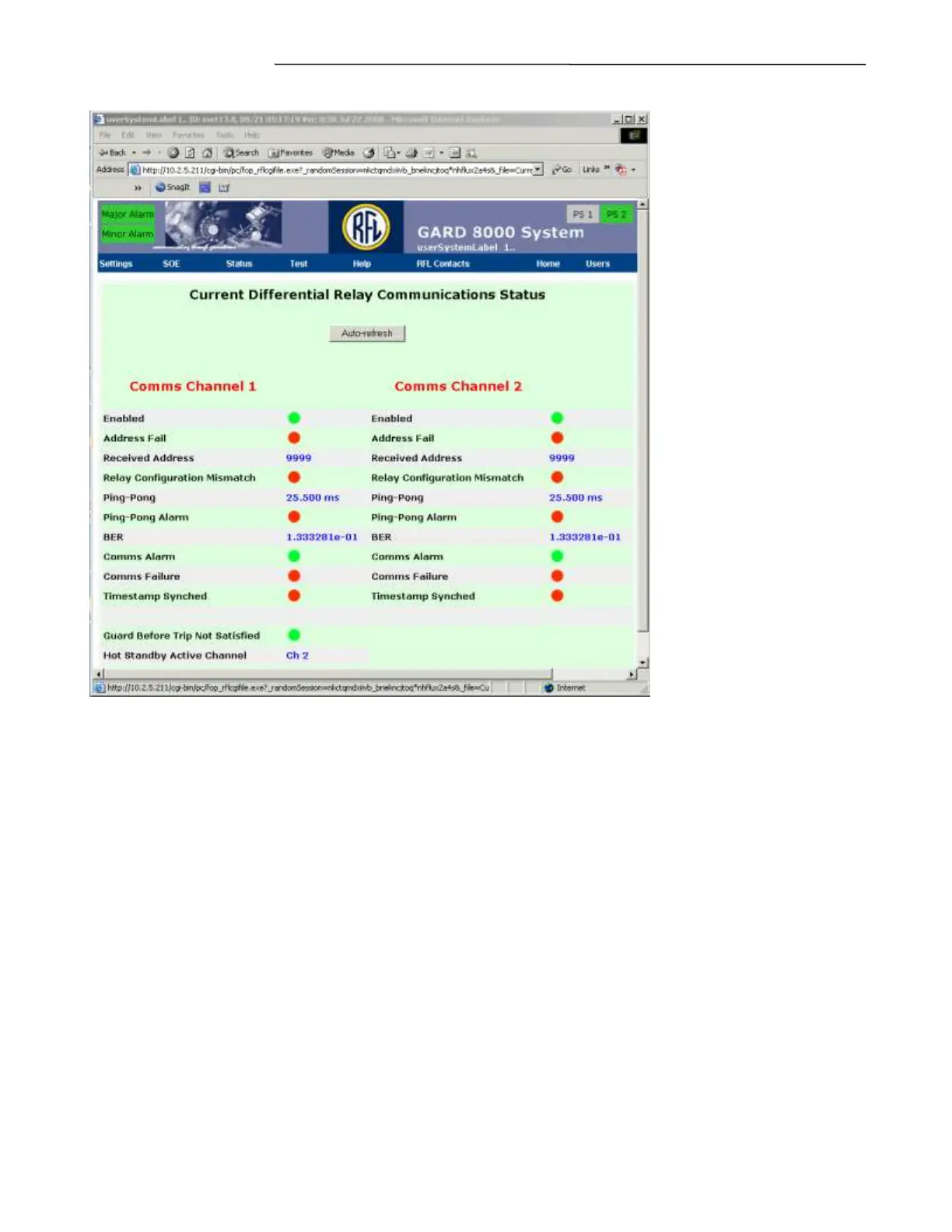

Figure 13-24. Current Differential Relay Communications Status webpage

Relay Communications Status Definitions:

Comms Channel 1 - 2

Enabled

Red will indicate that the channel is not enabled; green indicates that the channel is enabled.

Address Fail

When red this indicates that the address received from the remote relay (set via the transmit address

setting on the remote relay) does not match the setting for the received address at the local relay. No

protection messages are passed between relays unless the addresses match. Green indicates the

addresses are correct.

Received Address

This displays the received address from the remote relay (which must match the local settings for

receive address). It is displayed to help diagnose addressing problems, which may be caused by

network misconnections.
