RFL Electronics GARD 8000 - Figure 10-9. Front View of the 9508 RF Chassis Showing Module Locations

Power Line Carrier
GARD 8000 SYS RFL Electronics
April 23, 2015 10-20 973.334.3100
Table 10-10. Modules included in the 9508 RF Chassis
Module
Assembly Number
For Additional Information Refer To The
Following Paragraphs:
50W Power Amplifier
103085
10.8.1
Power Amp Power Supply
107250-4, -5
10.8.2
Tx Filter
107825
10.8.3
Balance Board
107815
10.8.4
External Amp Connection Board
107870
10.8.4
Line Board
103090-1
10.8.5
Rx Filter
107820
10.8.6
Rx Connection Board
107820-1
10.8.7
Attenuator Board
107810
10.8.8
RF Mother Board
103095
10.8.9
Refer to the Figure below for module locations. The 50W Power Amp is mounted on the 9508 front
door and is not shown for clarity. Refer to the next page for the RF chassis block diagram.

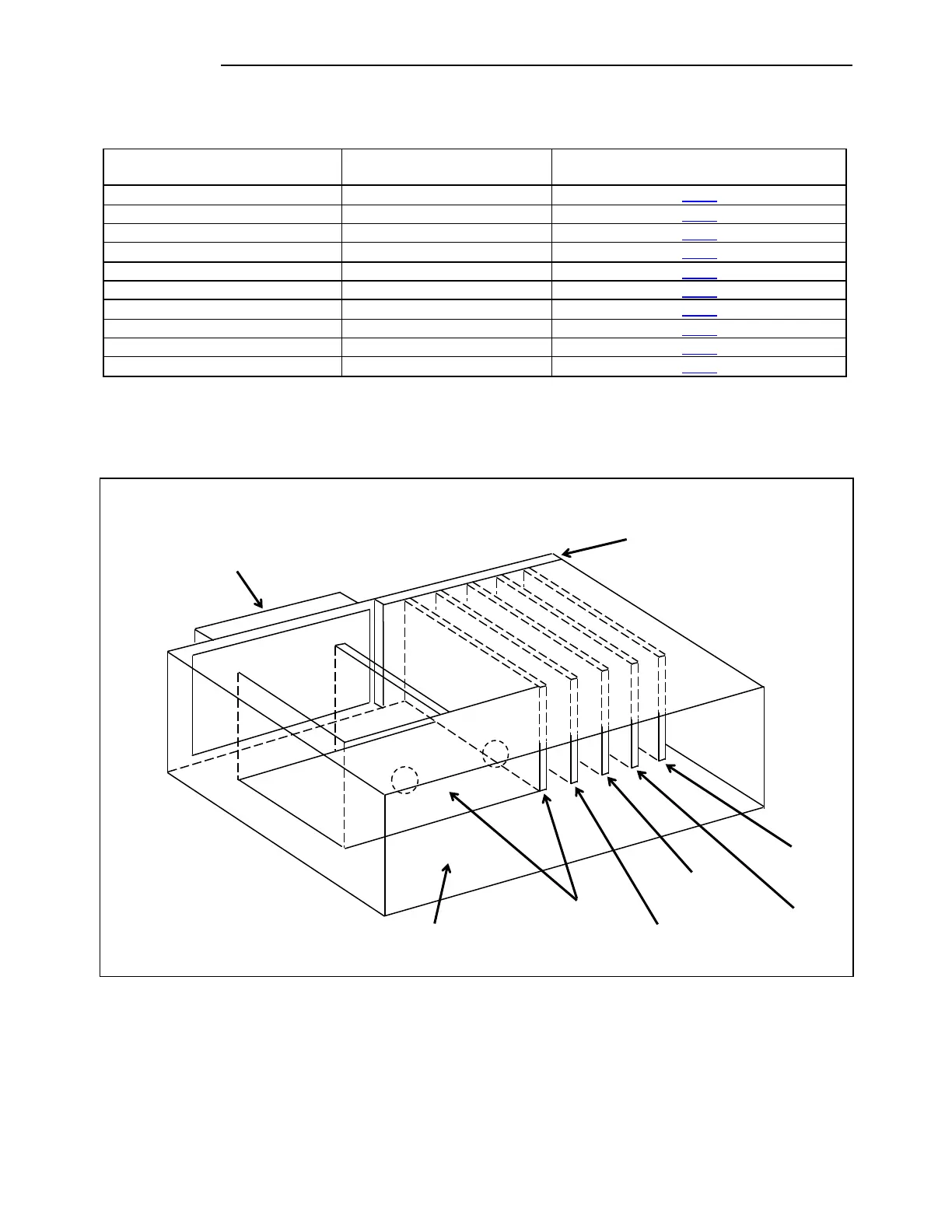

Figure 10-9. Front View of the 9508 RF Chassis showing Module locations
RX CONNECTION
BOARD OR
RX FILTER
ATTENUATOR
LINE
BOARD
BALANCE
BOARD
TX
FILTER
POWER AMP
POWER SUPPLY
MOTHER
BOARD
50W POWER AMP
(Mounted on f ront door,
not shown f or clarity )
