9.2.2 DIRECT TRANSFER TRIP

A direct transfer trip system is one in which the teleprotection device is solely responsible for tripping

of the remote breaker. This type of system is generally used for tripping remote circuit breakers, for

transformer faults, shunt reactor protection and breaker failure applications. DTT schemes typically

require trip times around 12ms, however, the trip times are not quite as critical as with PTT systems,

since DTT systems are typically backup protection. Because the teleprotection unit is solely

responsible for tripping, without supervision from the local relay, security and dependability is of the

utmost importance.

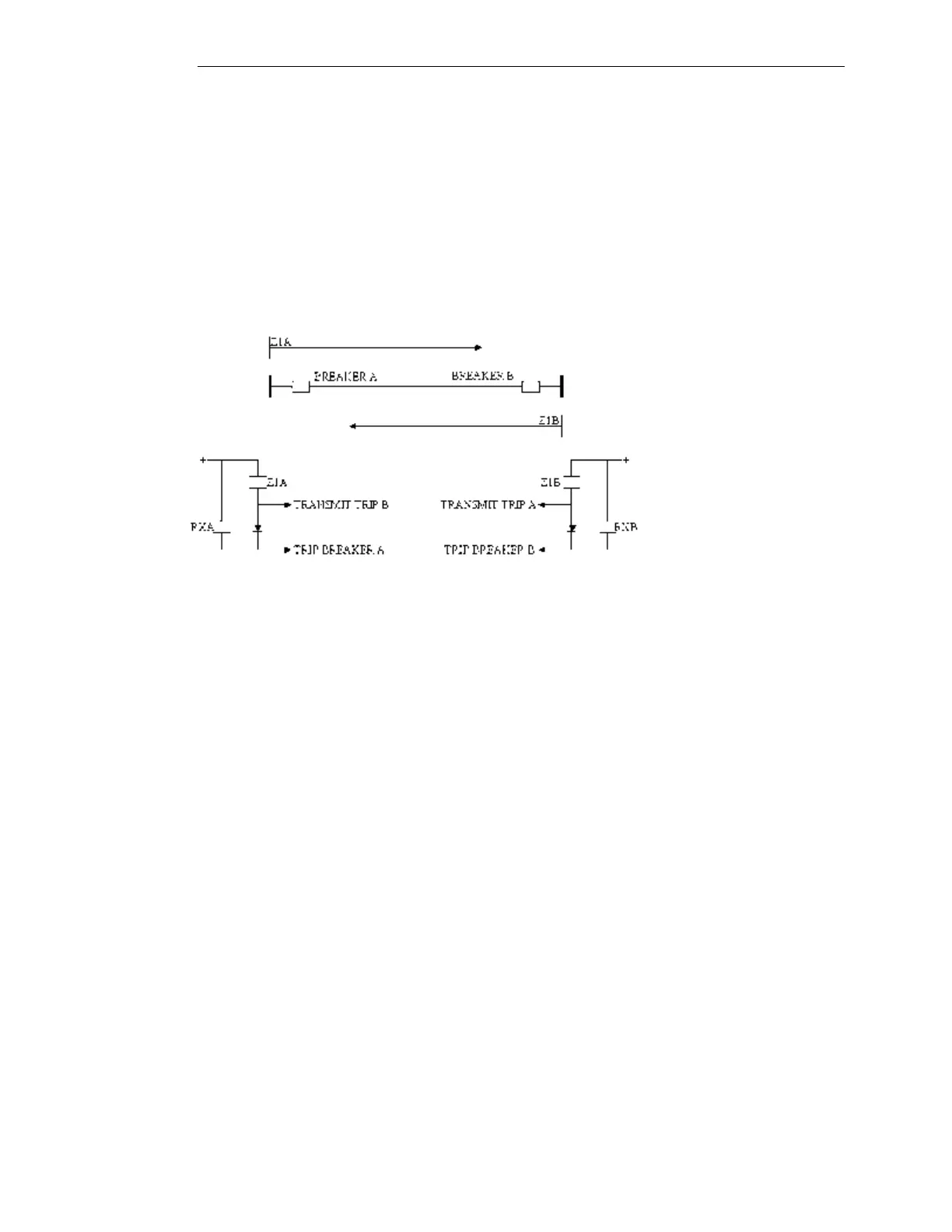

Figure 9-3. Direct Transfer Trip
