RFL Electronics GARD 8000 - Figure 7-29. Audio Tone General Settings Web Page

To Next Page

To Previous Page

Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-45 973.334.3100

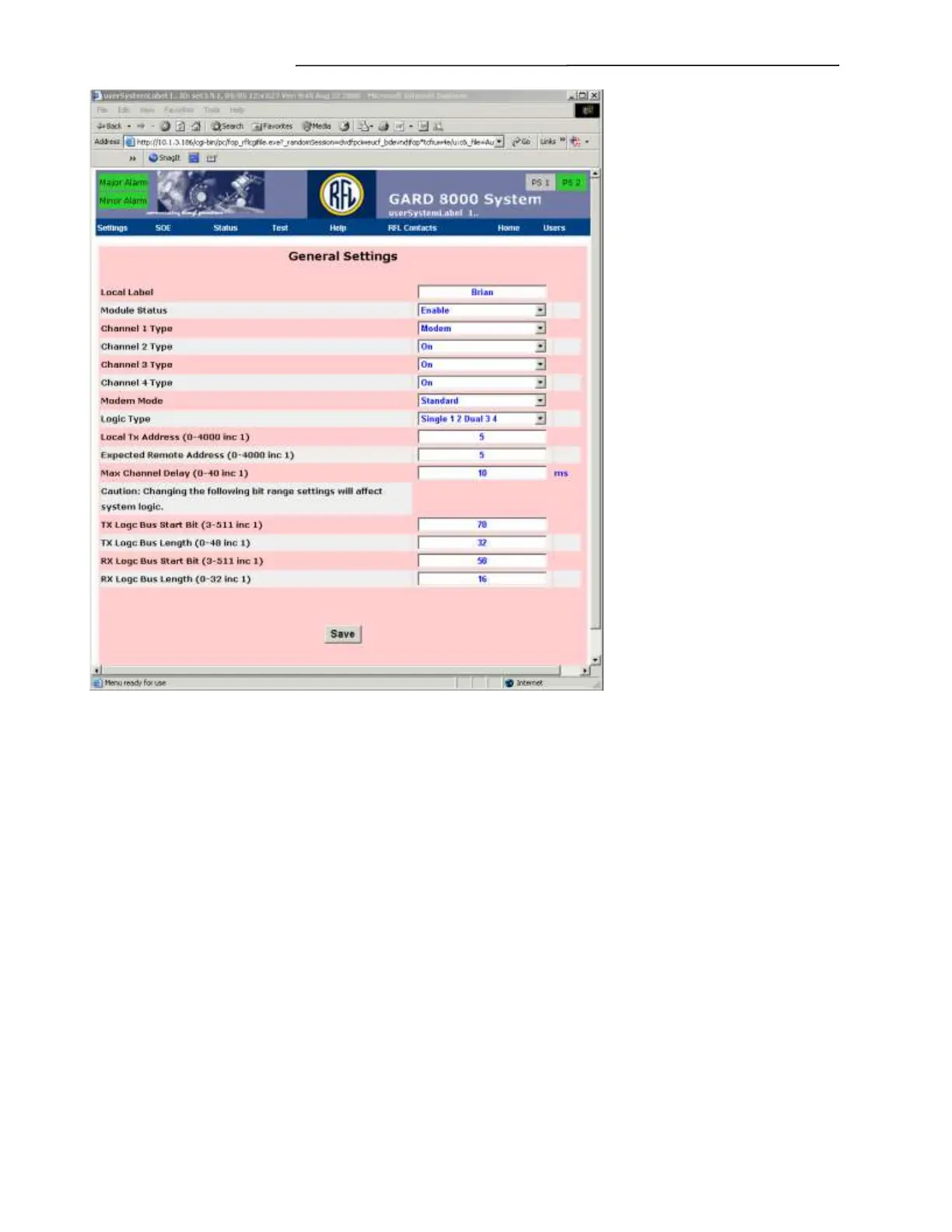

Figure 7-29. Audio Tone General Settings Web page

General Settings Definitions:

Local Label

A local label set by the user.

Module Status

Can be set to Enabled or Disabled.

Channel 1 Type

Can be set to On, Off, Pass Thru, or Modem.

On: The channel is enabled.

Off: The channel is disabled.

Pass Thru: The channel will be configured to function as a transfer filter with programmable

bandwidth and amplification.

Modem: The channel will function as a modem.

Channel 2 Type

Can be set to On, Off, or Pass Thru.

General Settings Definitions (continued)
