RFL Electronics GARD 8000 - Figure 10-14. TX Filter, Top View

To Next Page

To Previous Page

Power Line Carrier

GARD 8000 SYS RFL Electronics

April 23, 2015 10-23 973.334.3100

10.8.3 TX FILTER

The RFL 9508 Tx Filter is a plug-in module consisting of two PC boards and two air core inductors. It

plugs into the left side of the RF chassis as shown below.

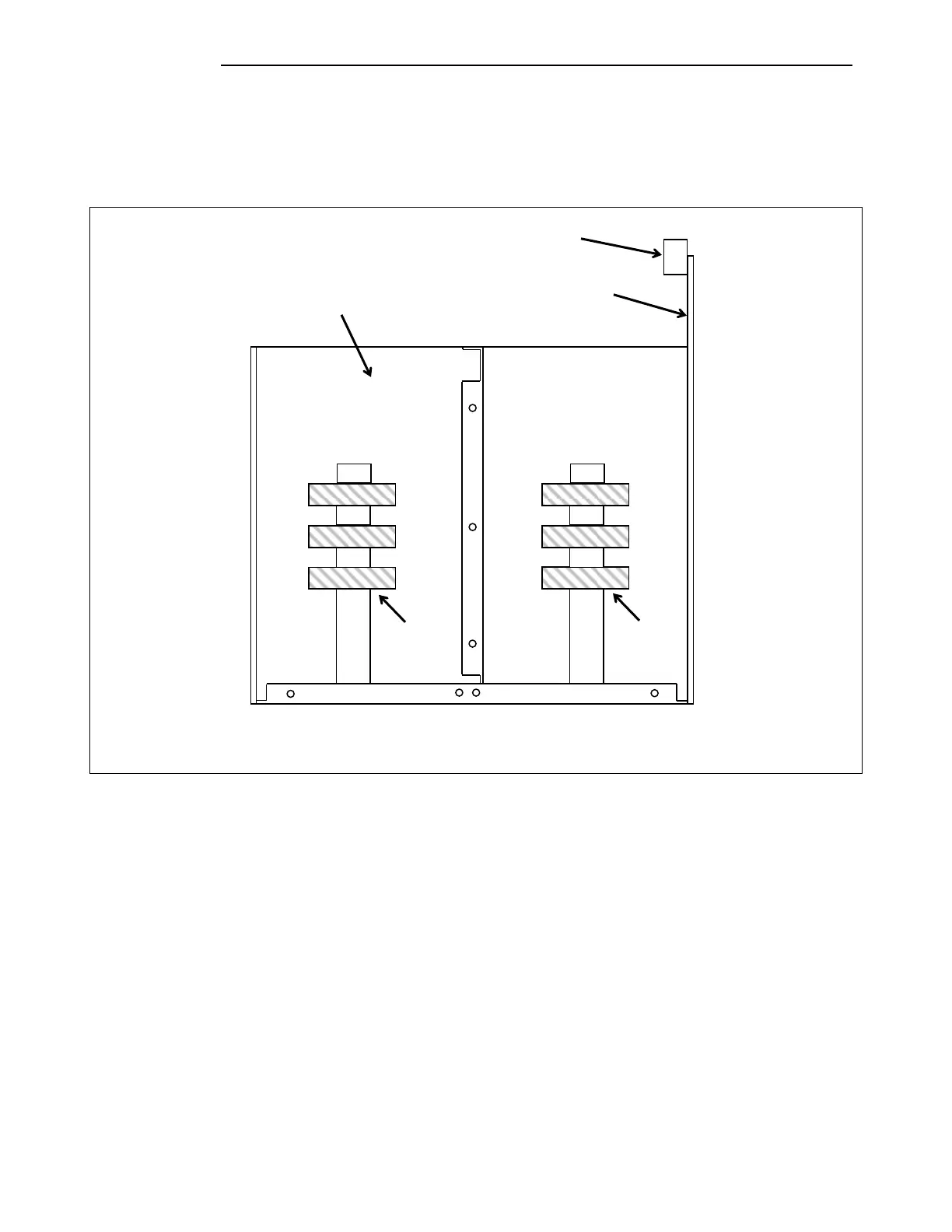

Figure 10-14. TX Filter, Top View

The function of the Tx Filter is to filter out harmonics and noise that is out of the bandwidth of the

filter. The bandwidth of the filter can be set to either 8kHz or 16kHz using two programmable jumpers,

J1 and J45. The filter center frequency is tunable from 24kHz to 496kHz using programmable jumpers.

The outer edges are 20kHz and 500kHz. The 8kHz bandwidth is used for most applications.

CONNECTOR

(Plugs Into Mother Board)

PC BOARD

107828-2

PC BOARD

107828-1

AIR CORE

INDUCTOR

AIR CORE

INDUCTOR
