Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-72 973.334.3100

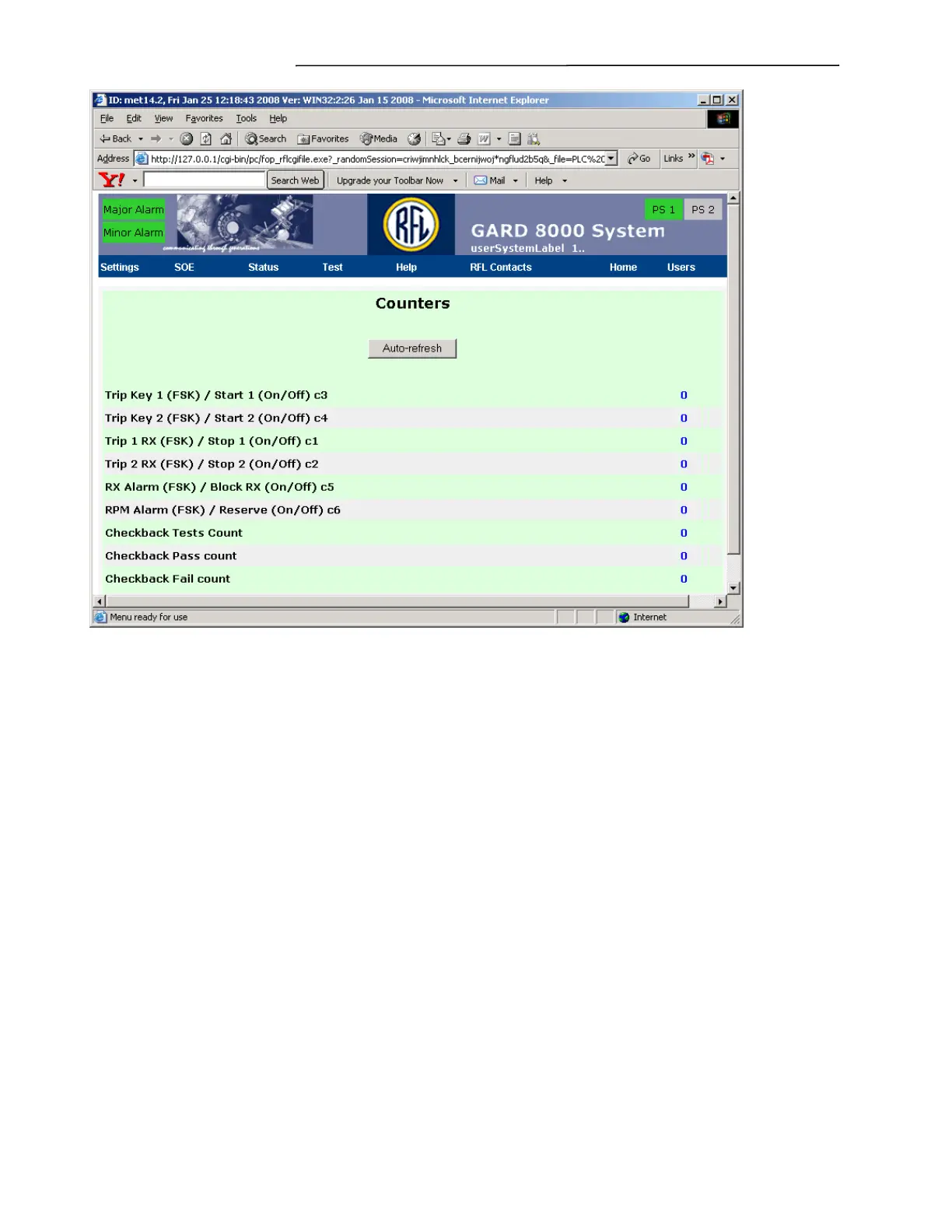

Figure 7-42. PLC Counter Values Web page

PLC Counters Definitions:

Trip Key 1 (FSK)/ Start 1 (On/Off)c3

In FSK mode indicates the Trip Key 1 count.

In on-off mode indicates the Start 1 Key count.

Trip Key 2 (FSK)/ Start 2 (On/Off)c4

In FSK mode indicates the Trip Key 2 count.

In on-off mode indicates the Start 2 Key count.

Trip 1 RX (FSK)/ Stop 1 (On/Off)c1

In FSK mode indicates the RX Key 1 count.

In on-off mode indicates the Stop 1 Key count.

Trip 2 RX (FSK)/ Stop 2 (On/Off)c2

In FSK mode indicates the RX Key 2 count.

In on-off mode indicates the Stop 2 key count.

PLC Counters Definitions (continued):
