Installation and Commissioning

GARD 8000 SYS RFL Electronics

November 28, 2017 4-19 973.334.3100

PS 48/

125V

Single Main Controller (Slot 2)

Single Power Supply

Normal

Disable

DS-1

DS-2

DS-4

DS-3

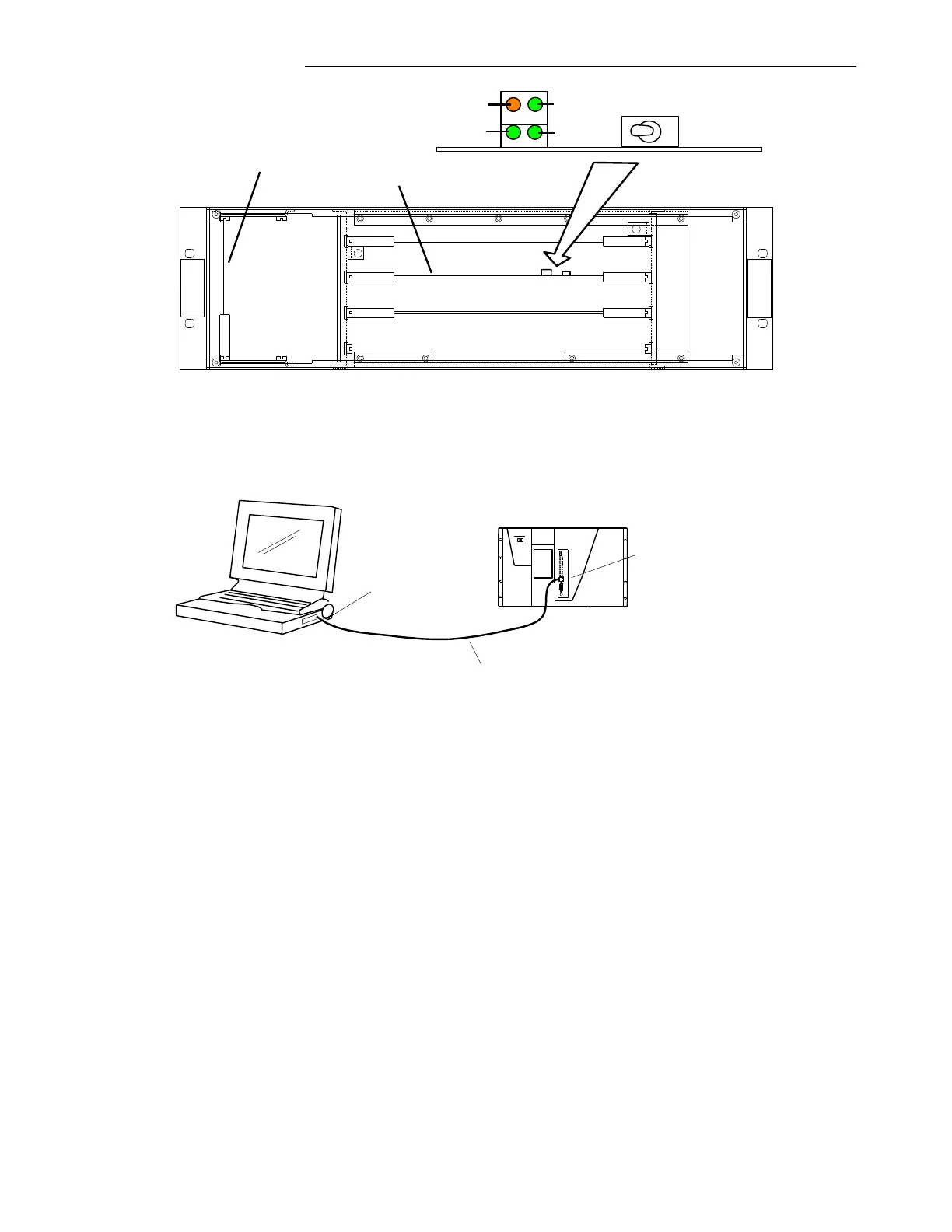

Figure 4-13. GARD 8000 Controller Module (Teleprotection Commissioning)

4.6.1.2 FRONT PORT ETHERNET CONNECTION

GARD8000

Laptop/Notebook PC

Standard Cat 5 Patch Cable

IP Address: 192.168.1.10

Subnet Mask: 255.255.255.0

IP Address: 192.168.1.1

Subnet Mask: 255.255.255.0

RJ-45 Ethernet Port

Note: The GARD 8000 is delivered with pre-set IP addresses. The front port IP address is

factory set to 192.168.1.1 with a subnet mask of 255.255.255.0. The Rear port IP address is

configurable.

The IP Address assigned to the front port is 192.168.1.1 for every GARD 8000 chassis.

DO NOT plug this port into a LAN. You cannot have more than one device with the same

address on a network. The front port is strictly for direct connection to a Laptop PC. The

Laptop should have an IP Address on the same subnet (192.168.1) as described below.

The front port has no default gateway configured, so it is not routable. This is done for

security purposes.

1. Connect a standard Cat 5 Patch Cable from the RJ-45 Ethernet port on your PC to the front

RJ-45 Ethernet port on the GARD 8000.

2. Configure the IP address of your PC as follows:

a. From a PC desktop, click Start, click Run, type ncpa.cpl, and then click OK.

b. A Network and Dial Up Connection window will appear.
