RFL Electronics GARD 8000 - Figure 7-43. Telemetry Transmitter Module Settings

To Next Page

To Previous Page

Chassis Configuration Settings

GARD 8000 SYS RFL Electronics

April 1, 2012 7-74 973.334.3100

After clicking on the Telemetry Module, use the pulldown menu to select Settings > Configuration. A

General Settings web page will appear. Click General Settings for the following web page.

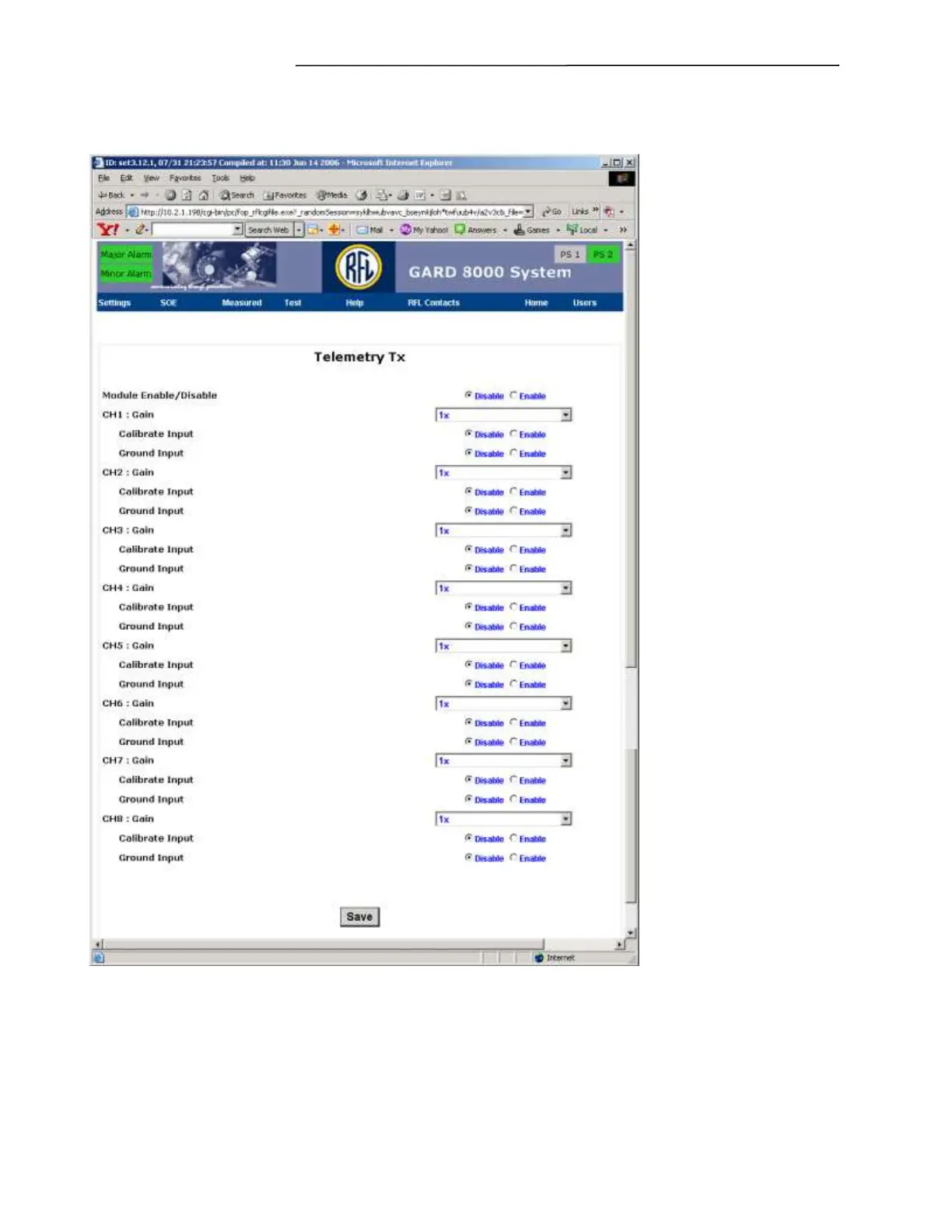

Figure 7-43. Telemetry Transmitter Module Settings

Eight channels can be configured; their definitions are shown on the following page.
